STM8L101F2P3TR Microcontroller from STMicroelectronics

The STM8L101F2P3TR is a cutting-edge microcontroller unit (MCU) designed by STMicroelectronics, a global semiconductor leader known for their high-performance integrated circuits. This product is part of the STM8L low-power family, which is specifically engineered to deliver robust performance while maintaining minimal power consumption, making it an ideal choice for battery-operated applications and energy-saving devices.

Key Features

• Core: The MCU is built around an advanced STM8 core with a maximum operating frequency of 16 MHz, which provides a balanced combination of processing power and efficiency.
• Memory: It comes with 4 KB of Flash program memory and 1 KB of true data EEPROM, which is partitioned in two banks and allows read-while-write (RWW) operations. This feature ensures data integrity and flexibility in data storage management.
• RAM: 512 bytes of RAM are included, offering enough space for temporary data storage during operation.
• I/O Ports: The device boasts 16 GPIO (general-purpose input/output) pins with high sink/source capability, which can be multiplexed with various on-chip peripherals for flexible interface options.
• Low Power Modes: Multiple low power modes are available, including Wait, Active-halt, and Halt, which help to reduce power consumption to a minimum when the MCU is not in full operation.
• Analog Features: Integrated analog peripherals include an 8-bit analog-to-digital converter (ADC) with up to 5 channels, allowing the MCU to interface with analog sensors and convert their signals for digital processing.
• Timers: The STM8L101F2P3TR contains an advanced control timer, as well as a standard timer, both of which can be used for a range of timing and control tasks.
• Communication Interfaces: For communication purposes, the MCU is equipped with a UART (Universal Asynchronous Receiver/Transmitter) for serial communication, which is essential for sending and receiving data over long distances.

Applications

The versatility of the STM8L101F2P3TR makes it suitable for a wide array of applications, particularly those requiring low power consumption and high integration. Common uses include consumer electronics, home appliances, industrial controls, and personal health devices.

Package and Quality

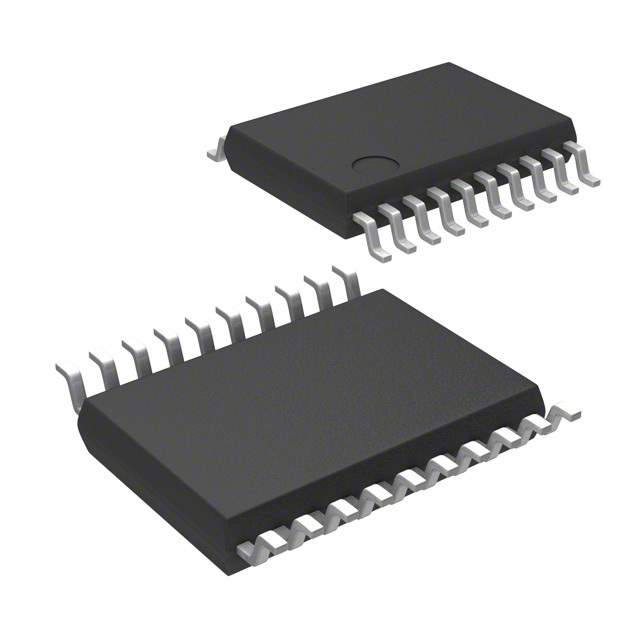

This MCU is available in a TSSOP20 package, which is a compact form factor ideal for space-constrained applications. The product is also characterized by a high level of reliability and robustness, meeting the stringent quality standards set by STMicroelectronics.
