STP10NK60Z - N-Channel MOSFET by STMicroelectronics

The STP10NK60Z is a high-performance N-channel Power MOSFET produced by the renowned semiconductor manufacturer STMicroelectronics. This power MOSFET is designed to deliver efficient power conversion in a wide range of electronic applications, making it an ideal choice for designers who require a balance between fast switching, low on-resistance, and cost-effectiveness.

With a drain-source voltage (V<sub>DS) of 600V and a continuous drain current (I<sub>D) of 10A, the STP10NK60Z can handle high voltage applications while providing a robust and reliable performance. The device's on-resistance (R<sub>DS(on)) is as low as 0.85Ω, which contributes to its high efficiency by minimizing conduction losses.

The STP10NK60Z incorporates STMicroelectronics' proprietary Zener-protected SuperMESH™ technology, which provides enhanced protection against electrostatic discharge (ESD). This feature ensures the reliability and longevity of the device in environments where ESD can be a concern. Additionally, the MOSFET is characterized by its extremely low gate charge (Q<sub>g), which results in reduced switching losses and enables faster switching speeds, thus improving the overall efficiency of the power management system.

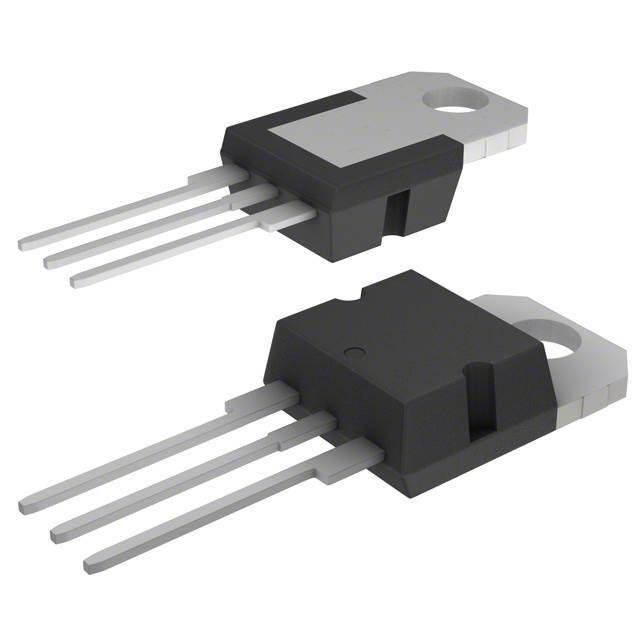

The device is encapsulated in a TO-220 package, known for its excellent thermal performance and ease of mounting on a printed circuit board (PCB). This package is widely accepted in the industry and is suitable for through-hole mounting, which allows for better heat dissipation and mechanical stability.

Applications of the STP10NK60Z are diverse and include switch-mode power supplies (SMPS), power factor correction (PFC) circuits, high-efficiency DC-DC converters, LED lighting, and other power management tasks that require a high breakdown voltage, fast switching, and low on-resistance.

In summary, the STP10NK60Z is a testament to STMicroelectronics' commitment to providing high-quality power MOSFETs that meet the requirements of modern electronic designs. Its combination of high voltage capability, low on-resistance, and fast switching makes it a versatile component suitable for a broad array of power applications.
