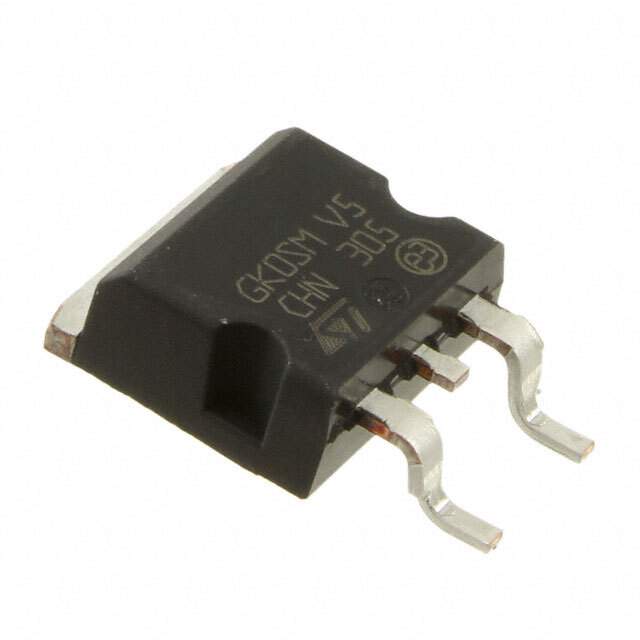

The STPS20SM100SG-TR is a high-performance Schottky diode from STMicroelectronics, designed to offer a blend of low forward voltage drop and high surge current capability. This power Schottky rectifier is particularly suited for switch mode power supplies and high-frequency DC to DC converters.

Key Features

• Voltage Ratings: With a repetitive peak reverse voltage (V<sub>RRM) of 100V, it can handle the demands of various applications.
• Current Capacity: The device is capable of conducting up to 20A of average forward current (I<sub>F(AV)), making it suitable for high-current operations.
• Low Power Loss: High junction temperature capability ensures low voltage drops and reduced power loss.
• High Surge Capability: It can withstand surge currents, ensuring reliability during transient conditions.
• Package: Housed in an insulated TO-220AB package, it provides electrical insulation rated at 2500V RMS. This package is also RoHS compliant and halogen-free, making it environmentally friendly.

Applications

The STPS20SM100SG-TR is versatile and can be used in a variety of applications, including:

• Power supply units
• DC-DC converters
• Free-wheeling diodes
• Reverse battery protection
• Automotive applications
• Industrial power management

Reliability and Performance

STMicroelectronics ensures that the STPS20SM100SG-TR meets rigorous standards of reliability and performance. The device's low forward voltage drop reduces thermal stress, offering enhanced life expectancy and reliability in harsh environments. Its high-frequency operation capability also makes it an ideal choice for applications requiring efficiency and compactness.

Environmental Compliance

Committed to environmental sustainability, STMicroelectronics has designed the STPS20SM100SG-TR to comply with international environmental standards. It is RoHS compliant and free from hazardous substances, reflecting the company's dedication to reducing the ecological footprint of its products.
