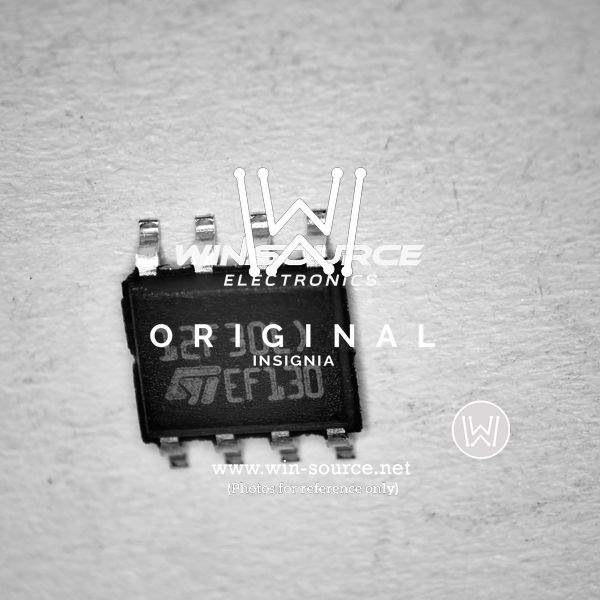

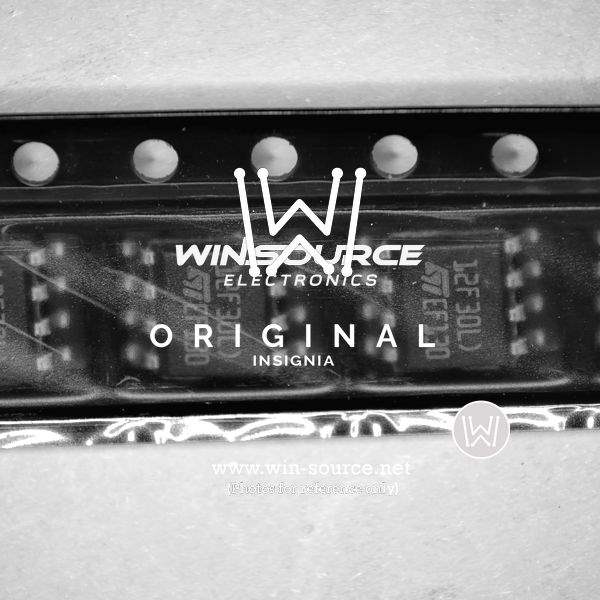

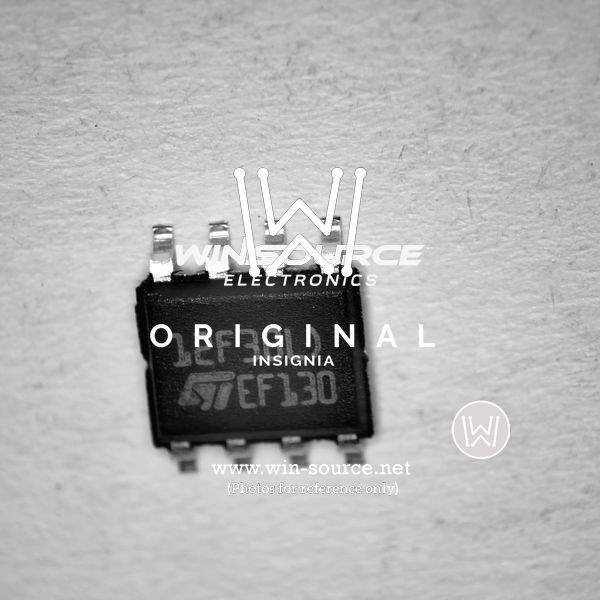

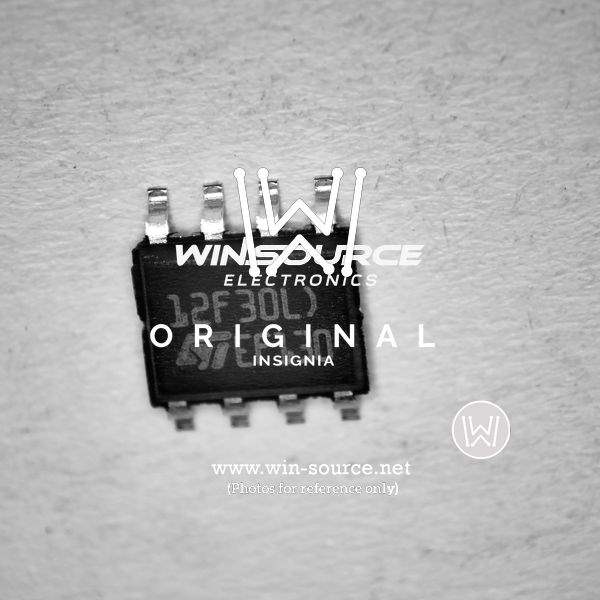

The STS12NF30L is a state-of-the-art, low voltage, N-channel Power MOSFET designed and manufactured by the renowned semiconductor company, STMicroelectronics. This advanced power MOSFET is a key component for a wide array of electronic applications, particularly where high efficiency and low power consumption are crucial. The STS12NF30L is designed to handle a continuous drain current of up to 12A, making it suitable for high-performance power management tasks.

Key Features

• Low Threshold Voltage: The device features a low threshold voltage, ensuring that it can be driven at lower voltages and thus compatible with low-voltage control logic.
• Low On-resistance: Its on-resistance (R<sub>DS(on)) is exceptionally low, which translates to reduced conduction losses and improved overall efficiency.
• High Switching Speed: The STS12NF30L is designed for fast switching, providing efficient operation and reducing energy losses during the transition periods.
• 100% Avalanche Tested: Each unit is rigorously tested for avalanche performance, ensuring reliability and robustness in harsh conditions.
• Application Versatility: Suitable for a broad range of applications including DC/DC converters, motor control, and power management systems.

Applications

The STS12NF30L MOSFET is ideal for various applications such as:

• Switch Mode Power Supplies (SMPS)
• DC-to-DC converters
• Motor Control Circuits
• Power Management Functions

Technical Specifications

Parameter Value Drain-source Voltage (V<sub>DS) 30V Continuous Drain Current (I<sub>D) 12A Power Dissipation (P<sub>D) 45W Operating Temperature Range -55°C to 175°C

Overall, the STS12NF30L from STMicroelectronics is a robust and reliable component that offers superior performance for power conversion and management applications. Its high efficiency and fast switching capabilities make it a preferred choice for designers looking to optimize their electronic systems.
