Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Tray
Status Obsolete(EOL)
Core Processor 8032
Part Core Size 8-Bit
Speed(Frequency) 40MHz
Number of I/O 36
Program Memory Size 160KB (160K x 8)
Program Memory Type FLASH
Data RAM Size 8K x 8
Supply Voltage - Operating 4.5 V to 5.5 V
Data Converters A/D 8x10b
Temperature Range - Operating -40°C to 85°C (TA)

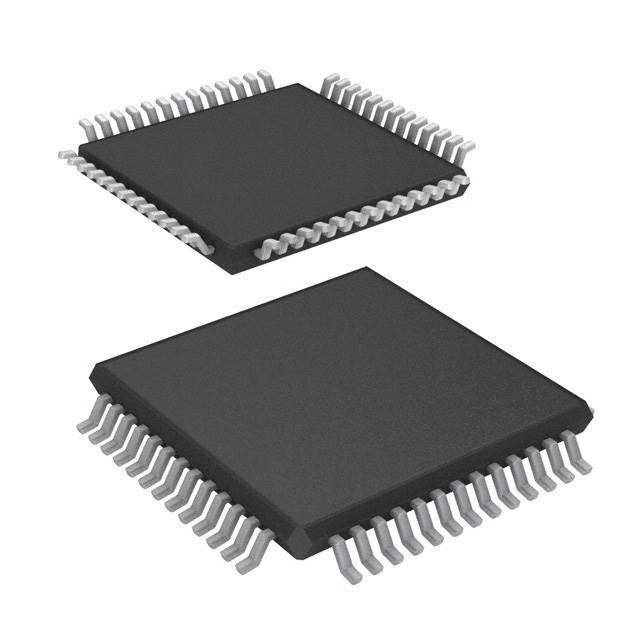

Dimension 52-TQFP
Win Source Part Number 396108-UPSD3333D-40T6
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian UPSD3333D-40T6 CAD Model

Description

STMicroelectronics UPSD3333D-40T6 Microcontroller

The UPSD3333D-40T6 is a robust 8-bit microcontroller from STMicroelectronics, designed for demanding embedded applications. This high-performance microcontroller is part of the uPSD3300 series, which integrates a 8032 core with programmable logic, making it an ideal choice for a wide range of industrial, automotive, and consumer applications.

Key Features

  • High-Performance 8-bit Microcontroller: The UPSD3333D-40T6 is built around a fast 8032 microcontroller core, operating at up to 40 MHz, providing quick processing capabilities for time-sensitive tasks.
  • Dual-bank Flash Memory: Equipped with 288 KB of flash memory, the device supports In-System Programming (ISP) and In-Application Programming (IAP), allowing for flexible and efficient code updates.
  • SRAM with Battery Backup: It comes with 16 KB of SRAM, complemented by an optional battery backup capability, ensuring data retention even in the event of a power loss.
  • Programmable Logic: The microcontroller features programmable logic cells (PLCs) that can be configured for additional logic functions, reducing the need for external components.
  • Comprehensive Peripheral Set: This includes multiple 16-bit timers, a PWM unit, and UARTs, providing versatile options for interfacing with other devices and managing various functions.
  • USB Interface: An integrated USB 1.1 interface supports full-speed operation, enabling easy connectivity with computers and other USB devices.
  • Robust Security: Security features include a programmable security bit and lock bytes, helping to prevent unauthorized access to the firmware.

Applications

The UPSD3333D-40T6's combination of processing power, memory options, and programmable logic makes it suitable for a range of applications, including:

  • Industrial control systems
  • Automotive systems
  • Consumer electronics
  • Communication devices

Package and Quality

This microcontroller comes in a TQFP80 package, offering a compact footprint while still providing ample I/O for complex designs. STMicroelectronics ensures high-quality and reliability standards, making the UPSD3333D-40T6 a reliable choice for both prototyping and mass production.
