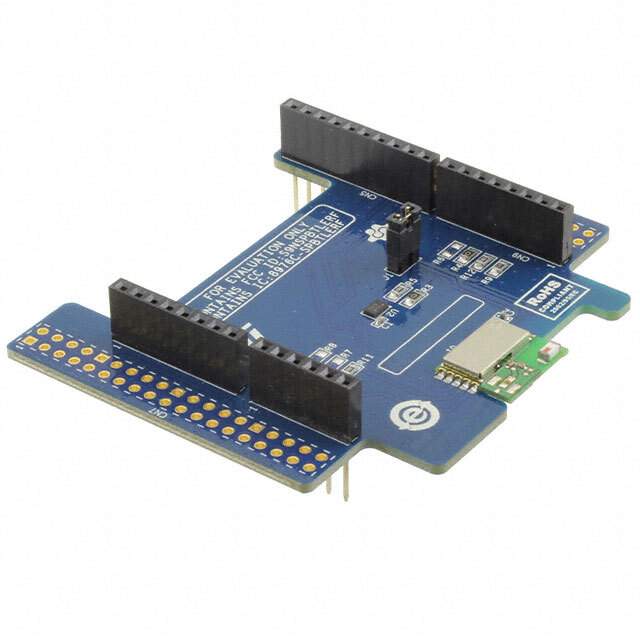

STMicroelectronics X-NUCLEO-IDB05A1 Bluetooth Low Energy Expansion Board

The X-NUCLEO-IDB05A1 is a high-performance expansion board designed by STMicroelectronics to offer Bluetooth Low Energy (BLE) connectivity to any STM32 Nucleo development board. This expansion board is based on the SPBTLE-RF module, which utilizes the BlueNRG-MS Bluetooth radio chip. The BlueNRG-MS chip is a powerful, low-power network processor that is fully compliant with Bluetooth specification v4.1, making it an ideal choice for developers looking to integrate BLE functionality into their projects.

One of the key features of the X-NUCLEO-IDB05A1 is its ease of integration. The board is designed to plug directly into the STM32 Nucleo motherboard via the Arduino UNO R3 connectors, providing a seamless interface for developers to add wireless capabilities to their designs. The expansion board also supports the SPI interface to communicate with the main controller, ensuring high-speed data transfer rates and efficient power consumption.

The X-NUCLEO-IDB05A1 is equipped with an array of features to support a wide range of BLE applications. These include multiple user LEDs and a user button, which can be used for device status indication and user input, respectively. The board also has a dedicated NET pin that allows users to manage the BLE network processor shutdown and wakeup sequences, providing additional control over power consumption.

Developers can leverage the comprehensive development ecosystem provided by STMicroelectronics, which includes a rich set of software libraries and example code. The expansion board is compatible with the STM32Cube software platform, which provides a HAL library as well as a collection of middleware components such as the STM32Cube Expansion Package for Bluetooth Low Energy (X-CUBE-BLE1). This software support simplifies the development process and helps to accelerate time-to-market for BLE-enabled products.

In summary, the X-NUCLEO-IDB05A1 expansion board is a versatile and powerful solution for adding Bluetooth Low Energy connectivity to STM32-based designs. With its robust hardware features, comprehensive software support, and ease of integration, it is an excellent choice for developers looking to create innovative wireless applications in areas such as wearables, health monitoring, smart home, and IoT devices.
