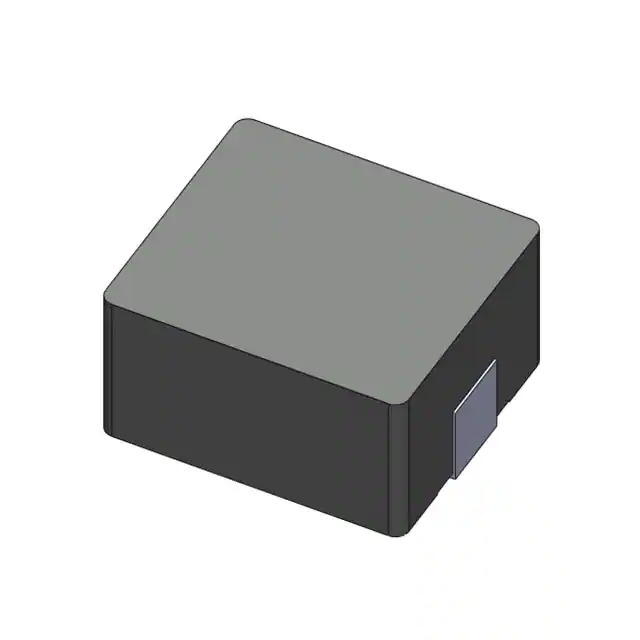

Same model may have multiple batches, images only for reference.
104CDMCCDS-2R2MC Sumida America Components Inc.
Same model may have multiple batches, images only for reference.

104CDMCCDS-2R2MC

Part No 104CDMCCDS-2R2MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 2.2UH 15A 7 MOHM SMD
Datasheet
104CDMCCDS-2R2MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series 104CDMC/DS
Package Tape & Reel
Product Status Active
Type Molded
Material - Core Metal
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 15 A
Current - Saturation (Isat) 21A
Shielding Shielded
DC Resistance (DCR) 7mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package SMD
Size / Dimension 0.453" L x 0.394" W (11.50mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1370492-104CDMCCDS-2R2MC
Ultra Librarian 3D Model Ultra Librarian 104CDMCCDS-2R2MC CAD Model

Description

The 1370492-104CDMCCDS-2R2MC is a molded fixed inductor manufactured by Sumida America Components Inc.

  • Series: 104CDMC/DS
  • Package: Nonstandard
  • Temperature Range: -55°C to 125°C
  • Tolerance: ±20%
  • Size: 0.453" L x 0.394" W (11.50mm x 10.00mm)
  • Seated Height: 0.157" (4.00mm) maximum
  • Core Material: Metal
  • Shielding: Shielded
  • Inductance: 2.2µH
  • Current Rating: 15A
  • Saturation Current: 21A
  • DC Resistance: 7mOhm maximum
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Product Status: Active
  • HTSUS Code: 8504.50.4000
