Same model may have multiple batches, images only for reference.

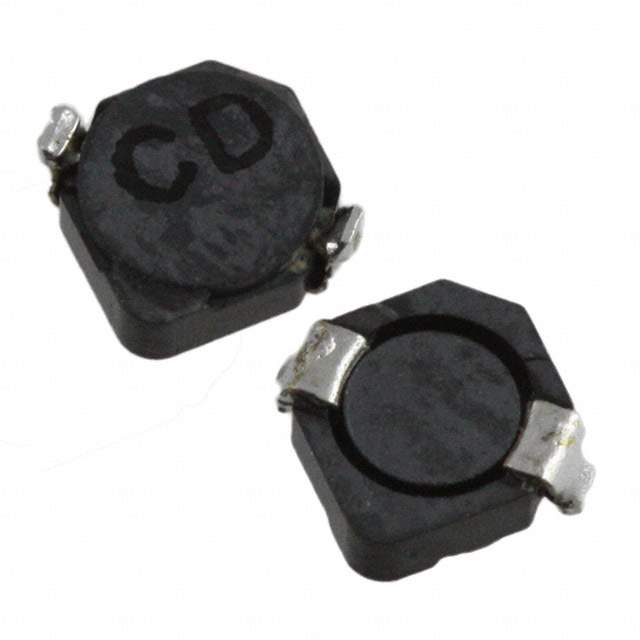

CDRH2D11/HPNP-100NC Real Image
Same model may have multiple batches, images only for reference.

CDRH2D11/HPNP-100NC

Part No CDRH2D11/HPNP-100NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 520MA 559 MOHM
Datasheet
CDRH2D11/HPNP-100NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 10μH
Tolerance ±30%
Current Rating 520mA
Current - Saturation 520mA
DC Resistance (DCR) 559 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.043" (1.10mm)
Win Source Part Number 013064-CDRH2D11/HPNP-100NC
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDRH2D11/HPNP-100NC CAD Model

Description

CDRH2D11/HPNP-100NC

The CDRH2D11/HPNP-100NC is an advanced inductor, offering superior performance for your electronic designs. This high-inductance component is ideal for applications requiring efficient energy storage and low electromagnetic interference.

  • Applications:
    • DC-DC converters
    • Power supplies
    • Mobile devices
  • Features and Benefits:
    • High inductance values for increased energy storage
    • Low profile design to fit compact circuits
    • Excellent DC resistance, contributing to improved efficiency
  • Additional Details: The CDRH2D11 series inductors are known for their reliability and stability under various environmental conditions, ensuring long-term performance in any project.
