Same model may have multiple batches, images only for reference.

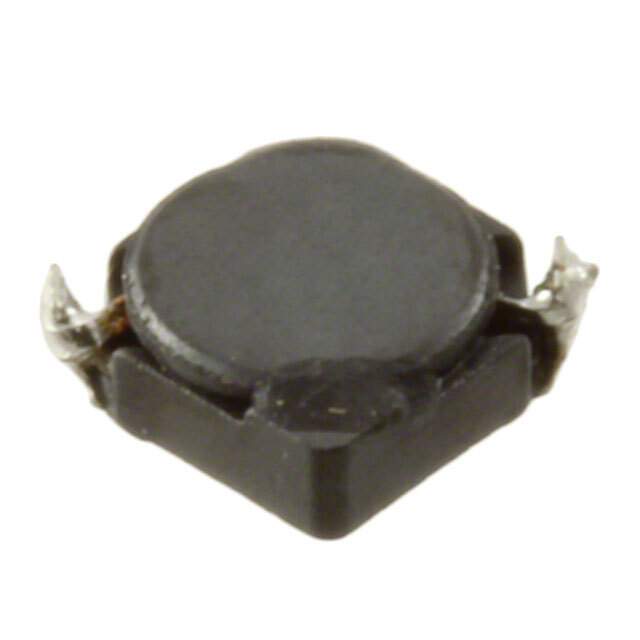

CDRH3D14NP-2R2NC Real Image
Same model may have multiple batches, images only for reference.

CDRH3D14NP-2R2NC

Part No CDRH3D14NP-2R2NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.75A 69MOHM SMD / 2.2 µH Shielded Inductor 1.75 A 69mOhm Max Nonstandard
Datasheet
CDRH3D14NP-2R2NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH3D14
Package Tape & Reel
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±25%
Current Rating (Amps) 1.75 A
Current - Saturation (Isat) 1.6A
Shielding Shielded
DC Resistance (DCR) 69mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) 0.059" (1.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 308-1975-2,308-1975-1,308-1975-6
Standard Package 1,000
Win Source Part Number 964052-CDRH3D14NP-2R2NC
Ultra Librarian 3D Model Ultra Librarian CDRH3D14NP-2R2NC CAD Model

Description

The Sumida America Components Inc. CDRH3D14NP-2R2NC is a shielded inductor that comes with a tape & reel package.

  • Series: CDRH3D14
  • Temperature Range: -40°C to 105°C
  • Inductance: 2.2 μH
  • Current Rating: 1.75 A
  • Package: Nonstandard
  • Mounting: Surface
  • Category: Inductors, coils, chokes
  • ECCN: EAR99
  • HTSUS code: 8504.50.4000
  • Other part numbers: 308-1975-2,308-1975-1,308-1975-6
