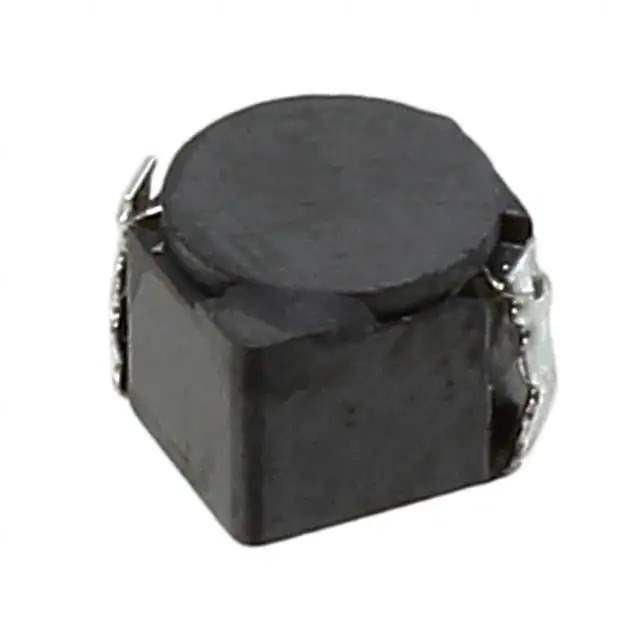

CDRH3D28NP-3R3NC Real Image
Same model may have multiple batches, images only for reference.

CDRH3D28NP-3R3NC

Part No CDRH3D28NP-3R3NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 3.3UH 1.85A 72.1 MOHM / 3.3 μH Shielded Inductor 1.85 A 72.1mOhm Max Nonstandard
Datasheet
CDRH3D28NP-3R3NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH3D28
Package Tape & Reel
Product Status Active
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±30%
Current Rating (Amps) 1.85 A
Current - Saturation (Isat) 2A
Shielding Shielded
DC Resistance (DCR) 72.1mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) 0.118" (3.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 866251-CDRH3D28NP-3R3NC
Ultra Librarian 3D Model Ultra Librarian CDRH3D28NP-3R3NC CAD Model

Description

The CDRH3D28NP-3R3NC is a fixed inductor from the CDRH3D28 series.

  • Series: CDRH3D28
  • Type: Shielded
  • Inductance: 3.3 µH
  • Size and Dimension: 0.150" L x 0.150" W (3.80mm x 3.80mm)
  • Height: 0.118" (3.00mm)
  • DC Resistance (DCR): 72.1mOhm (Max)
  • Current Rating: 1.85A
  • Operating Temperature Range: -40°C to 105°C
  • Manufacturer: Sumida America Components Inc.
  • Product Status: Active
