Same model may have multiple batches, images only for reference.

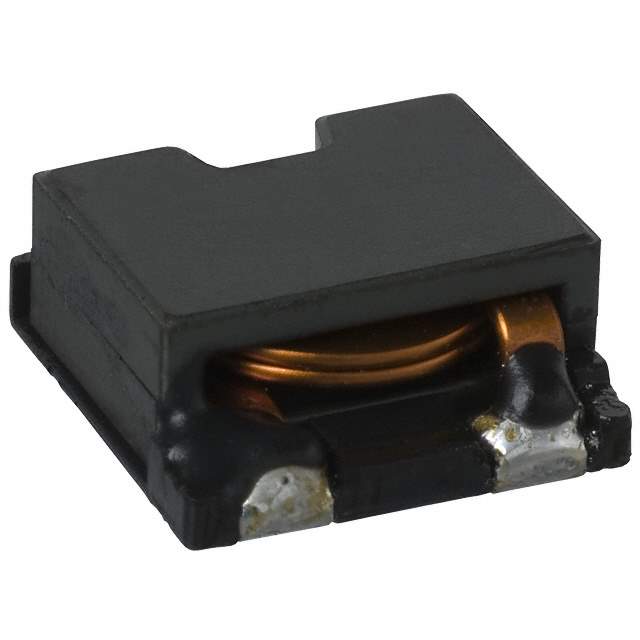

CEP125NP-0R8MC Real Image
Same model may have multiple batches, images only for reference.

CEP125NP-0R8MC

Part No CEP125NP-0R8MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 800NH 16.5A 2.5MOHM SM / 800 nH Shielded Drum Core, Wirewound Inductor 16.5 A 2.5mOhm Max Nonstandard
Datasheet
CEP125NP-0R8MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Sumida America Components Inc.
Series CEP125
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 800 nH
Tolerance ±30%
Current Rating (Amps) 16.5 A
Current - Saturation (Isat) 25.7A
Shielding Shielded
DC Resistance (DCR) 2.5mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.220" (5.60mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 500
Win Source Part Number 1051797-CEP125NP-0R8MC
Ultra Librarian 3D Model Ultra Librarian CEP125NP-0R8MC CAD Model

Description

The CEP125NP-0R8MC is a shielded fixed inductor from Sumida America Components Inc. that is ideal for various applications.

  • Package: nonstandard
  • Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Maximum Seated Height: 0.220" (5.60mm)
  • Inductance: 800 nH
  • Tolerance: ±30%
  • DC Resistance (DCR): 2.5mOhm max
  • Current Rating: up to 16.5A
  • Operating Temperature: -40°C to 125°C
  • Core Type: drum core
  • Type: wirewound
  • Shielding: shielded
  • RoHS Compliant: no
