Same model may have multiple batches, images only for reference.

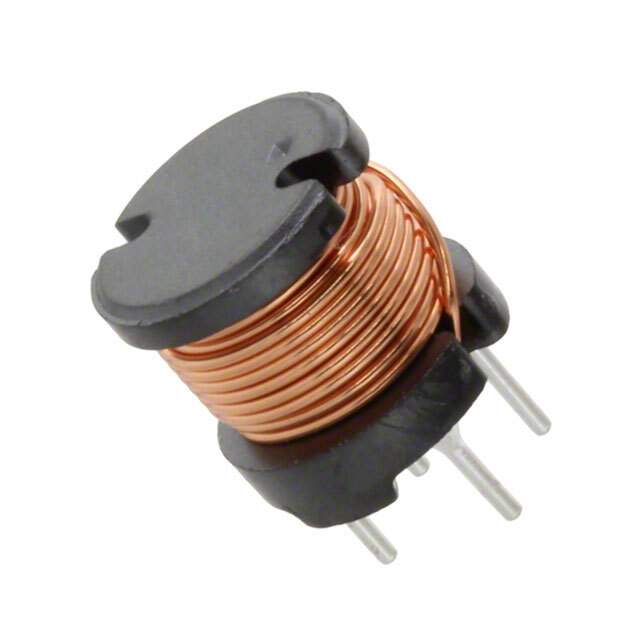

RCH110NP-101K Real Image
Same model may have multiple batches, images only for reference.

RCH110NP-101K

Part No RCH110NP-101K
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 100UH 1.7A 160 MOHM TH / 100 µH Unshielded Drum Core, Wirewound Inductor 1.7 A 160mOhm Max Radial, Vertical Cylinder, 4 Leads (Open)
Datasheet
RCH110NP-101K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Sumida America Components Inc.
Series RCH-110
Package Bulk
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±10%
Current Rating (Amps) 1.7 A
Shielding Unshielded
DC Resistance (DCR) 160mOhm Max
Frequency - Self Resonant 5.7MHz
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 1 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder, 4 Leads (Open)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 308-2085
Standard Package 100
Win Source Part Number 1007142-RCH110NP-101K
Ultra Librarian 3D Model Ultra Librarian RCH110NP-101K CAD Model

Description

The Sumida America Components Inc. 1007142-RCH110NP-101K is a fixed inductor used in electronic devices. It has an inductance of 100 μH and a tolerance of ±10%. It is made of ferrite material and has a DC resistance of 160mOhm max. It is unshielded and has a through hole mounting type.
