Same model may have multiple batches, images only for reference.

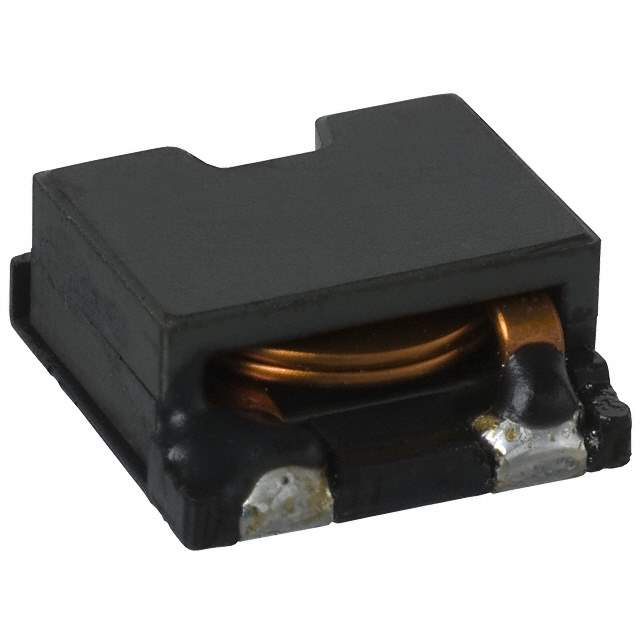

CEP125NP-4R0MC Real Image
Same model may have multiple batches, images only for reference.

CEP125NP-4R0MC

Part No CEP125NP-4R0MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Datasheet
CEP125NP-4R0MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Sumida America Components Inc.
Series CEP125
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4 µH
Tolerance ±20%
Current Rating (Amps) 12.5 A
Current - Saturation (Isat) 8.3A
Shielding Shielded
DC Resistance (DCR) 5.4mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.220" (5.60mm)
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1272718-CEP125NP-4R0MC
Ultra Librarian 3D Model Ultra Librarian CEP125NP-4R0MC CAD Model

Description

The Sumida America Components Inc. CEP125NP-4R0MC is a fixed inductor designed for electronic circuits that require high inductance. With a shielded drum core wirewound design, this inductor is perfect for applications that require a reliable and efficient power solution. The CEP125NP-4R0MC is part of the CEP125 series and is available @ Win Source.
