Same model may have multiple batches, images only for reference.

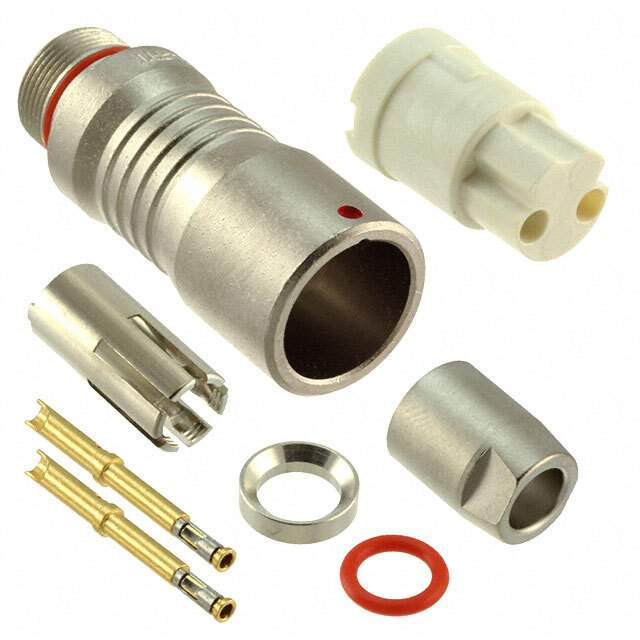

HS2L2F20C Real Image
Same model may have multiple batches, images only for reference.

HS2L2F20C

Part No HS2L2F20C
Manufacturer Switchcraft Inc.
Catalog Circular Connectors
Description CONN RCPT FMALE 2POS GOLD / Conn Circular F 2 POS Crimp ST Cable Mount 2 Terminal 1 Port Bulk
Datasheet
HS2L2F20C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Switchcraft Inc.
Series Dura-Pull, HS
Packaging Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 2
Mounting Free Hanging (In-Line)
Termination Crimp or Solder
Fastening Type Push-Pull
Orientation Keyed
Ingress Protection IP66/67/68 - Dust Tight, Water Resistant, Waterproof
Shell Material, Finish Copper Alloy, Nickel Plated, Electroless
Contact Finish Gold
Features Shielded
Voltage Rating DC 125VAC/DC
Current Rating 10A
Win Source Part Number 793951-HS2L2F20C
Popularity Medium
Supply and Demand Status Balance
Family Name HS2
Introduction Date February 03, 2016
Country of Origin United States of America
Estimated EOL Date 2032
Ultra Librarian 3D Model Ultra Librarian HS2L2F20C CAD Model

Description

The Switchcraft Inc. Dura-Pull HS series connector is a 2-position, shielded receptacle.

  • Socket Type: Female
  • Termination: Crimp or Solder
  • Fastening Type: Push-Pull
  • Contact Finish: Gold
  • Current Rating: 10A
  • Ingress Protection: IP66/67/68 (Dust Tight, Water-Resistant, Waterproof)
  • Keyed: Yes
  • Mounting Type: Free Hanging (In-Line)
  • Packaging: Bulk
  • Series: HS2
  • Shell Material: Copper Alloy, Nickel Plated (Electroless)
  • Applications: Connectors and Interconnects
  • Voltage Rating - DC: 125VAC/DC
  • Popularity: Medium
  • Supply and Demand Status: Balanced
