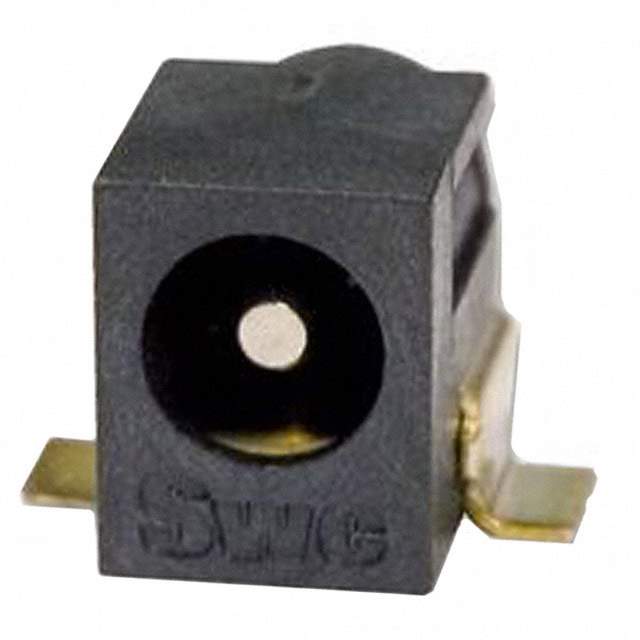

RASM712X Real Image
Same model may have multiple batches, images only for reference.

RASM712X

Part No RASM712X
Manufacturer Switchcraft Inc.
Catalog Barrel - Power Connectors
Description CONN PWR JACK 2.5X5.5MM SOLDER / Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Barrel - Power Connectors
Mfr Switchcraft Inc.
Package Bulk
Connector Type Jack
Gender Male
Industry Recognized Mating Diameter 2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter 0.098" (2.50mm ID), 0.248" (6.30mm OD)
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Single Switch, Normally Closed
Mounting Type Surface Mount, Right Angle
Termination Solder
Shielding Unshielded
Current Rating (Amps) 5 A
Contact Material - Plating Silver
Housing Material Thermoplastic
Contact Material Copper Alloy
Body Color Black
Base Product Number RASM71
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 100
Win Source Part Number 1018398-RASM712X
Ultra Librarian 3D Model Ultra Librarian RASM712X CAD Model

Description

The 1018398-RASM712X electronic component with the Win Source Part Number is a male jack connector designed for use in power connectors and is manufactured by Switchcraft Inc.

  • Conductors: 2
  • Contacts: 3
  • Switch: single, normally closed
  • Supply and Demand Status: balanced
  • Recommendation: use this component with caution and proper testing to ensure its functionality.
