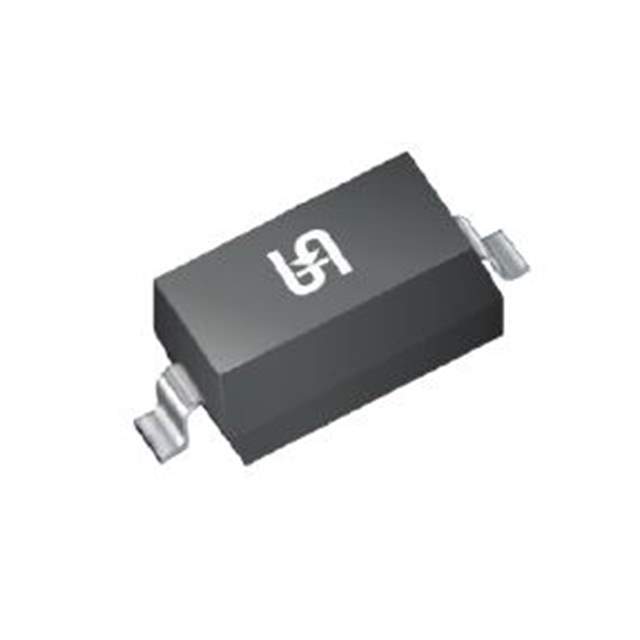

B0520LW RH Real Image
Same model may have multiple batches, images only for reference.

B0520LW RH

Part No B0520LW RH
Manufacturer Taiwan Semiconductor
Catalog OEM Parts (A - B)
Description Diode Small Signal Schottky 20V 0.5A 2-Pin SOD-123
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Element Configuration Single
Forward Current 500 mA
Forward Voltage 385 mV
Height 1.25 mm
Length 2.8 mm
Max Forward Surge Current (Ifsm) 5.5 A
Maximum Operating Temperature 125 °C
Max Repetitive Reverse Voltage (Vrrm) 20 V
Min Operating Temperature -65 °C
Mount Surface Mount
Number of Pins 2
Peak Non-Repetitive Surge Current 5.5 A
Peak Reverse Current 250 µA
RoHS Compliant
Width 1.7 mm
Win Source Part Number 1047298-B0520LW RH
Categories OEM Parts(A-B)
Manufacturer Taiwan Semiconductor
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B0520LW RH CAD Model

Description

The 1047298-B0520LW RH is an OEM part with a forward voltage of 385 mV, manufactured by Taiwan Semiconductor.

  • Peak Non-Repetitive Surge Current: 5.5 A
  • Forward Current: 500 mA
  • Maximum Repetitive Reverse Voltage (Vrrm): 20 V
  • Peak Reverse Current: 250 µA
  • Element Configuration: single
  • Length: 2.8 mm
  • Width: 1.7 mm
  • Height: 1.25 mm
  • Number of Pins: 2
  • Mounting: surface mount
  • Operating Temperature Range: -65 °C to 125 °C
  • RoHS compliant: yes
  • Supply and demand status: shortage
