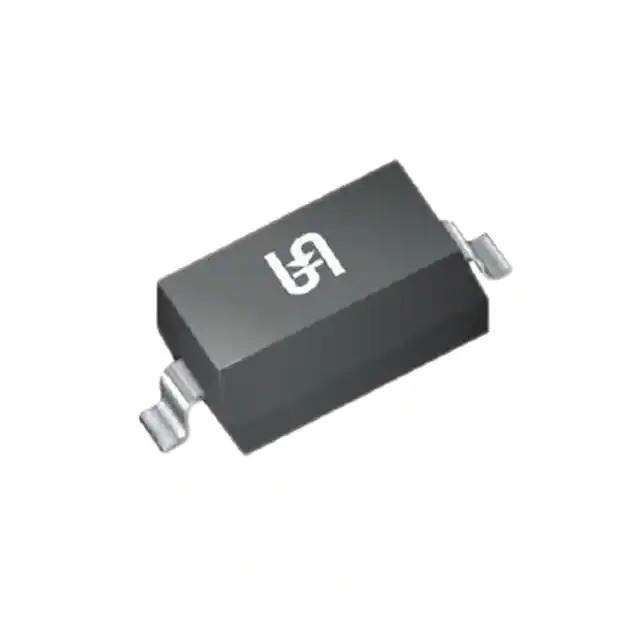

BAT46GW Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

BAT46GW

Part No BAT46GW
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description 0.25A, 100V, SCHOTTKY RECTIFIER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor Corporation
Series -
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 250mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 250 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5 µA @ 75 V
Capacitance @ Vr, F 39pF @ 0V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123
Supplier Device Package SOD-123
Operating Temperature - Junction -55°C ~ 125°C
Base Product Number BAT46
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1377956-BAT46GW
Ultra Librarian 3D Model Ultra Librarian BAT46GW CAD Model

Description

The BAT46GW is a surface mount Schottky diode from Taiwan Semiconductor Corporation.

  • Series: BAT46
  • Maximum Reverse Voltage: 100V
  • Application: Rectification
  • Package: SOD-123
  • Current Rating: 250mA
  • Forward Voltage: 1V @ 250mA
  • Reverse Leakage Current: 5µA @ 75V
  • Recovery Time: Less than 500ns
  • Capacitance: 39pF @ 0V, 1MHz
