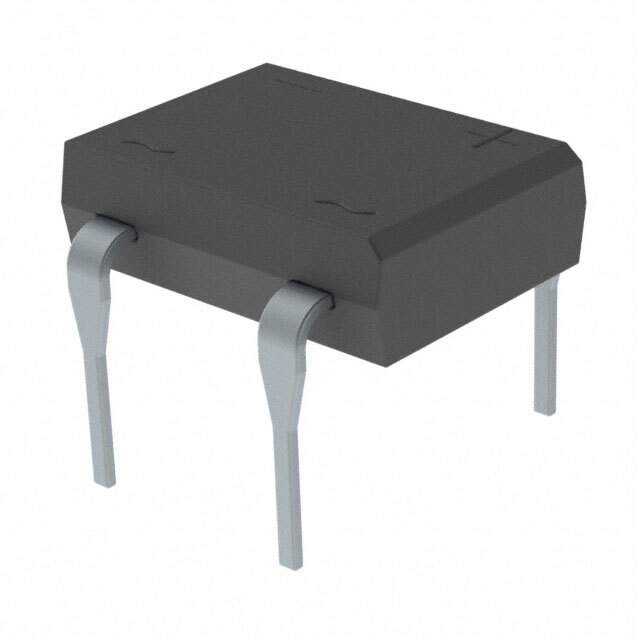

DBL101GHC1G Real Image
Same model may have multiple batches, images only for reference.

DBL101GHC1G

Part No DBL101GHC1G
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 50V 1A DBL  /  Bridge Rectifier Single Phase Standard 50 V Through Hole DBL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor Corporation
Series Automotive, AEC-Q101
Package Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 50 V
Current - Average Rectified (Io) 1 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Current - Reverse Leakage @ Vr 2 µA @ 50 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-DIP (0.300", 7.62mm)
Supplier Device Package DBL
Base Product Number DBL101
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 100
Win Source Part Number 1008554-DBL101GHC1G
Ultra Librarian 3D Model Ultra Librarian DBL101GHC1G CAD Model

Description

The DBL101GHC1G is a bridge rectifier diode that is designed for use in a variety of electronic applications and is manufactured by Taiwan Semiconductor Corporation.

  • Diode Type: Single Phase
  • Technology: Standard
  • Maximum Peak Reverse Voltage: 50V
  • Current Rating: 1A
  • Voltage Forward: 1.1V @ 1A
  • Current Reverse Leakage: 2 µA @ 50V
  • Mounting Type: Through-Hole
  • Package/Case: 4-DIP (0.300 inches, 7.62mm)
  • AEC-Q101 Compliant: Yes
  • Temperature Range: -55°C to 150°C
