Same model may have multiple batches, images only for reference.

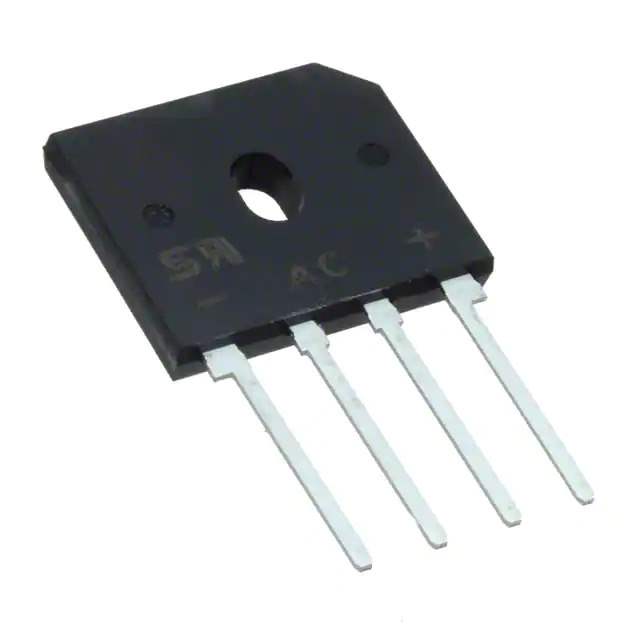

GBU1005 Real Image
Same model may have multiple batches, images only for reference.

GBU1005

Part No GBU1005
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 600V 10A GBU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tube
Product Status Discontinued
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 10 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 10 A
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, GBU
Supplier Device Package GBU
Base Product Number GBU1005
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 594320-GBU1005
Ultra Librarian 3D Model Ultra Librarian GBU1005 CAD Model

Description

The 594320-GBU1005 is a single phase bridge rectifier diode designed for converting alternating current (AC) to direct current (DC) in various electronic applications.

  • Average Rectified Current: 10A
  • Peak Reverse Voltage: 600V
  • Forward Voltage Drop: 1.1V @ 10A
  • Reverse Leakage Current: 5μA @ 600V
  • Package Type: Through-hole, 4-SIP, GBU
  • Operating Temperature: -55°C to 150°C
  • Manufacturer: Taiwan Semiconductor
