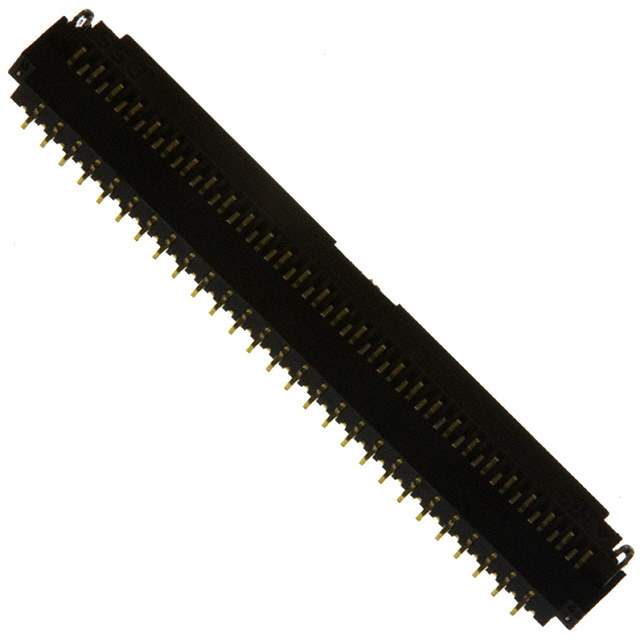

FH26-55S-0.3SHW(05) Real Image
Same model may have multiple batches, images only for reference.

FH26-55S-0.3SHW(05)

Part No FH26-55S-0.3SHW(05)
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FPC BOTTOM 55POS 0.30MM R/A
Datasheet
FH26-55S-0.3SHW(05) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features 55 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Manufacturer Hirose Electric Co Ltd
Series FH26
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -55°C ~ 85°C
Mounting Surface Mount, Right Angle
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number FH2655S03SHW05, *FH26-55S-0.3SHW(05), HFQ355TR, HFQ355CT, HFQ355DKR
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871864-FH26-55S-0.3SHW(05)
Ultra Librarian 3D Model Ultra Librarian FH26-55S-0.3SHW(05) CAD Model

Description

The Hirose Electric Co Ltd FH26 series connector is a 55-position FPC connector with bottom 0.012 inches (0.30mm) surface mount and right-angle features.

  • Positions: 55
  • Mounting: Bottom 0.012 inches (0.30mm) Surface Mount, Right-Angle
  • Pitch: 0.012 inches (0.30mm)
  • Connector Contacts: FPC
  • Status: Obsolete
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Package: Reel
  • ECCN: EAR99
  • HTSUS: 8536.69.4051
