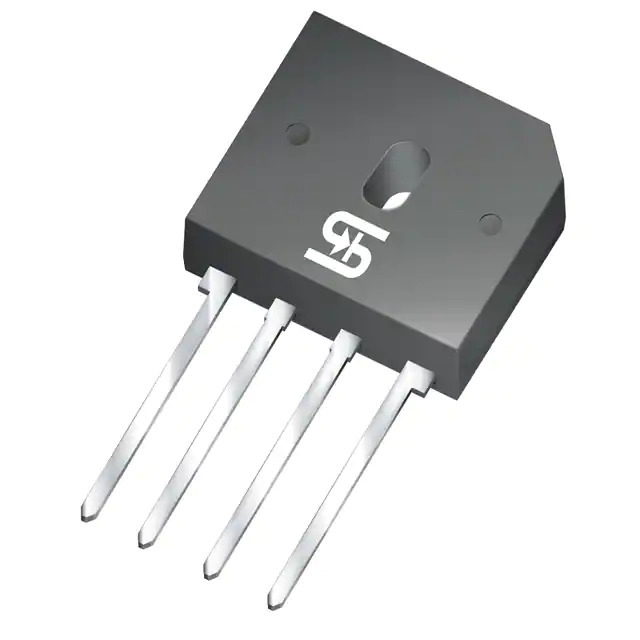

GBU2506 Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

GBU2506

Part No GBU2506
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 800V 25A GBU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor Corporation
Series -
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 800 V
Current - Average Rectified (Io) 25 A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 25 A
Current - Reverse Leakage @ Vr 10 µA @ 800 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, GBU
Supplier Device Package GBU
Base Product Number GBU2506
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1367957-GBU2506
Ultra Librarian 3D Model Ultra Librarian GBU2506 CAD Model

Description

The GBU2506 is a bridge rectifier diode from Taiwan Semiconductor Corporation. It is part of the GBU series and comes in a 4-SIP, GBU package.

  • Series: GBU
  • Package: 4-SIP, GBU
  • Voltage Rating: 800V
  • Current Rating: 25A
  • Phase: Single-Phase
  • Forward Voltage Drop: 1.2V @ 25A
  • Mounting Type: Through Hole
  • Operating Temperature: -55°C to 150°C
  • Reverse Leakage Current: 10μA @ 800V
  • Diode Type: Standard
  • REACH: Compliant
  • ECCN: EAR99
