Same model may have multiple batches, images only for reference.

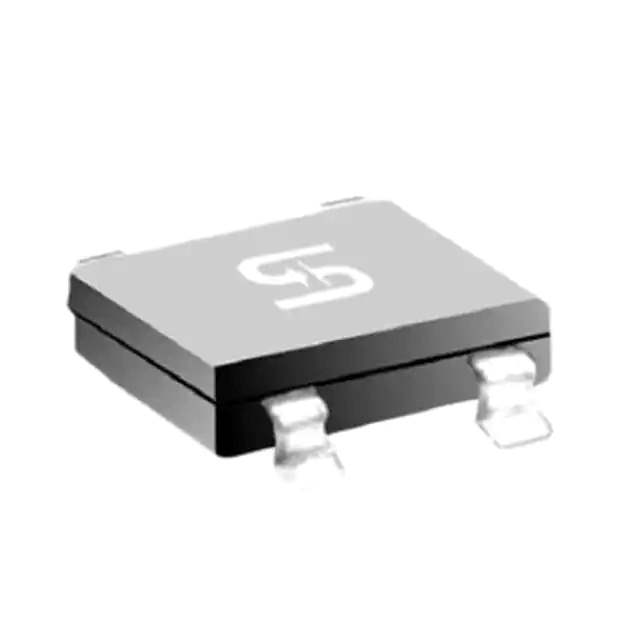

SBS34 Real Image
Same model may have multiple batches, images only for reference.

SBS34

Part No SBS34
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 40V 3A ABS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 40 V
Current - Average Rectified (Io) 3 A
Voltage - Forward (Vf) (Max) @ If 500 mV @ 3 A
Current - Reverse Leakage @ Vr 500 µA @ 40 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package ABS
Base Product Number SBS34
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 664056-SBS34
Ultra Librarian 3D Model Ultra Librarian SBS34 CAD Model

Description

The 664056-SBS34 is a single-phase bridge rectifier diode designed for standard applications from Taiwan Semiconductor.

  • Average Rectified Current: 3 A
  • Maximum Peak Reverse Voltage: 40 V
  • Forward Voltage: 500 mV @ 3 A
  • Reverse Leakage Current: 500 µA @ 40 V
  • Mounting: surface mountable
  • Package: 4-SMD, Gull Wing
  • Operating Temperature: -55°C to 150°C
  • Status: active
  • Commonly used in: electronic circuits and power supplies
