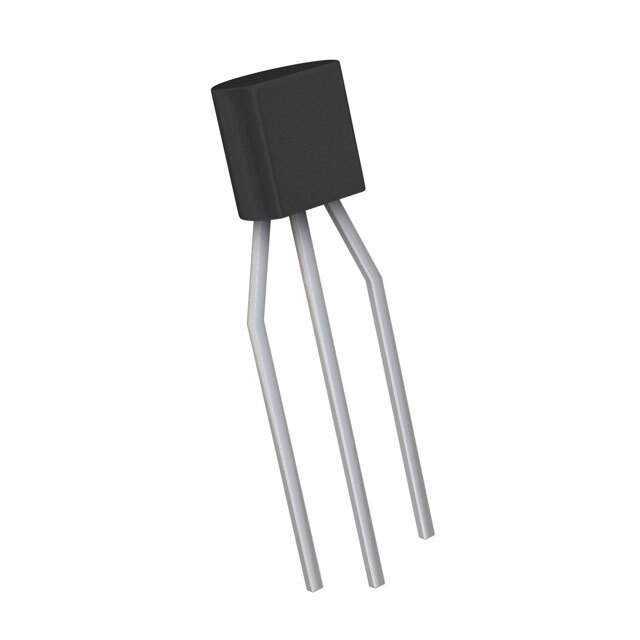

TS78L05CT A3 Real Image
Same model may have multiple batches, images only for reference.

TS78L05CT A3

Part No TS78L05CT A3
Manufacturer Taiwan Semiconductor
Catalog PMIC - Voltage Regulators - Linear
Description Standard Regulator Pos 5V 0.15A 3-Pin TO-92 Ammo
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Accuracy 4 %
Mounting SMD (SMT)
Case / Package TO-92
Dropout Voltage 1.7 V
Height 4.7 mm
Length 4.7 mm
Max Input Voltage 35 V
Maximum Operating Temperature 125 °C
Max Output Current 150 mA
Min Operating Temperature 0 °C
Mount Through Hole
Number of Outputs 1
Number of Pins 3
Output Current 150 mA
Output Type Fixed
Output Voltage 5 V
Output Voltage Accuracy 4 %
Polarity Positive
Quiescent Current 6 mA
Radiation Hardening No
RoHS Compliant
Schedule B 8542390000
Tolerance 4 %
Width 3.7 mm
Win Source Part Number 1101330-TS78L05CT A3
Categories PMIC - Voltage Regulators - Linear
Manufacturer Taiwan Semiconductor
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian TS78L05CT A3 CAD Model

Description

The Taiwan Semiconductor TS78L05CT A3 is a linear voltage regulator with a fixed output voltage of 5V and an output current of 150mA.

  • Output Voltage: 5V
  • Output Current: 150mA
  • Maximum Input Voltage: 35V
  • Dropout Voltage: 1.7V
  • Tolerance: 4%
  • Accuracy: 4%
  • Mounting Type: Through-hole
  • Case/Package: TO-92
  • Height: 4.7mm
  • Width: 3.7mm
  • Quiescent Current: 6mA
  • Polarity: Positive
  • Supply and Demand: Shortage
  • Operating Temperature Range: 0 °C to 125 °C
