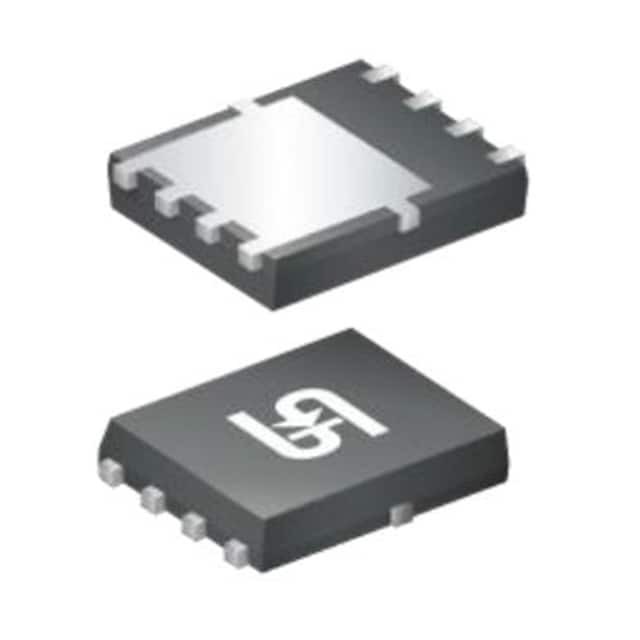

TSM024NA04LCR RLG

Name: TSM024NA04LCR RLG
Brand: Taiwan Semiconductor
SKU: 1101429
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSM024NA04LCR RLG
Manufacturer	Taiwan Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 40V 170A 8PDFN / N-Channel 40 V 170A (Tc) 125W (Tc) Surface Mount 8-PDFN (5x6)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Taiwan Semiconductor Corporation
Package	Tape & Reel
Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	170A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.4mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	67 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4224 pF @ 20 V
Power Dissipation (Max)	125W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	8-PDFN (5x6)
Package / Case	8-PowerTDFN
Base Product Number	TSM024
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	TSM024NA04LCR RLGDKR-ND,TSM024NA04LCR RLGCT-ND,TSM024NA04LCRRLGDKR,TSM024NA04LCR RLGDKR,TSM024NA04LCR RLGTR,TSM024NA04LCRRLGTR,TSM024NA04LCR RLGTR-ND,TSM024NA04LCRRLGCT,TSM024NA04LCR RLGCT
Standard Package	2,500
Win Source Part Number	1101429-TSM024NA04LCR RLG
Ultra Librarian 3D Model	Ultra Librarian TSM024NA04LCR RLG CAD Model

Alternative Products

Description

The Taiwan Semiconductor Corporation TSM024NA04LCR RLG is a MOSFET (Metal Oxide) electronic component with a drain to source voltage (Vdss) of 40 V and a continuous drain current (Id) of 170A (Tc) @ 25°C.

Package/Case: 8-PowerTDFN
Gate Charge (Qg): 67 nC @ 10 V
Maximum Vgs: ±20V
Temperature Range: -55°C to 150°C (TJ)
