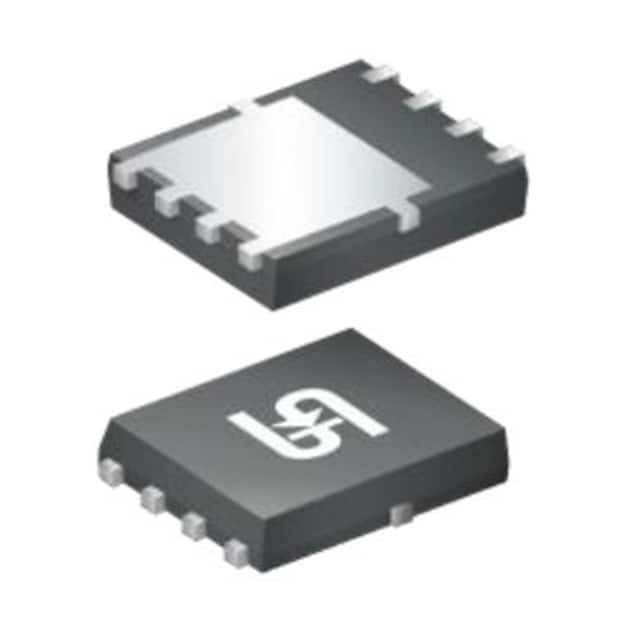

The TSM036N03PQ56 is an N-channel MOSFET transistor manufactured by Taiwan Semiconductor Corporation.

• Package: 8-PowerTDFN
• Drain to Source Voltage (Vdss): 30V
• Continuous Drain Current (Id) @ 25°C (Ta): 22A
• Continuous Drain Current (Id) @ 25°C (Tc): 124A
• Drive Voltage (Max Rds On): 4.5V
• Drive Voltage (Min Rds On): 10V
• Rds On @ 22A, 10V: 3.6mOhm
• Gate Threshold Voltage (Vgs(th)) @ 250µA: 2.5V
• Gate Charge (Qg) @ 10V: 50nC
• Maximum Vgs: ±20V
• Input Capacitance (Ciss) @ 15V: 2530pF
• Power Dissipation (Ta): 2.6W
• Power Dissipation (Tc): 83W
