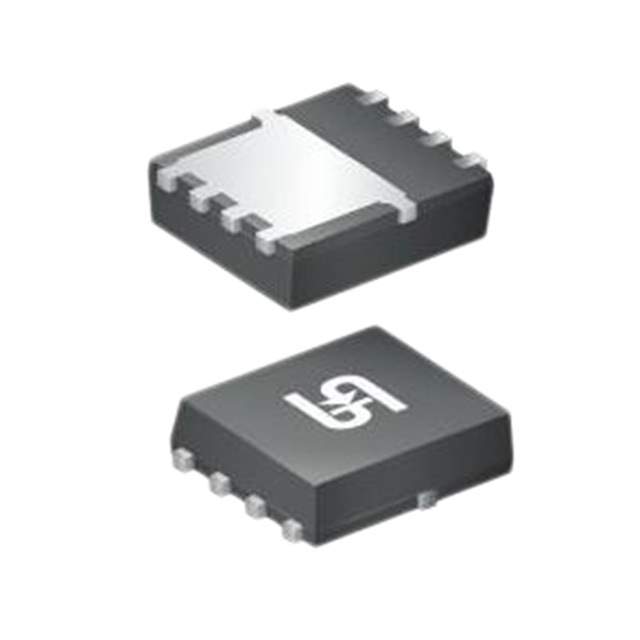

Same model may have multiple batches, images only for reference.

TSM150P03PQ33 RGG

Name: TSM150P03PQ33 RGG
Brand: Taiwan Semiconductor
SKU: 531840
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	TSM150P03PQ33 RGG
Manufacturer	Taiwan Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET, SINGLE, P-CHANNEL, -30V,
Datasheet	TSM150P03PQ33 RGG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Taiwan Semiconductor
Packaging	Reel - TR
Status	Active
Polarity	P-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	30V
Continuous Drain Current at 25°C	36A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	2.5V @ 250μA
Max Gate Charge	29.3nC @ 10V
Max Input Capacitance	1829pF @ 15V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	27.8W (Tc)
Maximum Rds On at Id,Vgs	15 mOhm @ 10A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	8-PDFN (3x3)
Dimension	8-PowerWDFN
Win Source Part Number	1114713-TSM150P03PQ33 RGG
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	5k pcs
Ultra Librarian 3D Model	Ultra Librarian TSM150P03PQ33 RGG CAD Model

Alternative Products

Description

The TSM150P03PQ33 RGG is a P-Channel MOSFET manufactured by Taiwan Semiconductor.

Drain-Source Breakdown Voltage: 30V
Continuous Drain Current: 36A (Tc) @ 25°C
Power Dissipation (Max): 27.8W (Tc)
Rds On: 15 mOhm @ 10A, 10V
Gate-Source Threshold Voltage: 2.5V @ 250μA
Gate Charge: 29.3nC @ 10V
Input Capacitance: 1829pF @ 15V
Gate-Source Voltage: ±20V
Package: 8-PDFN (3x3)
Application: Discrete Semiconductor Products
