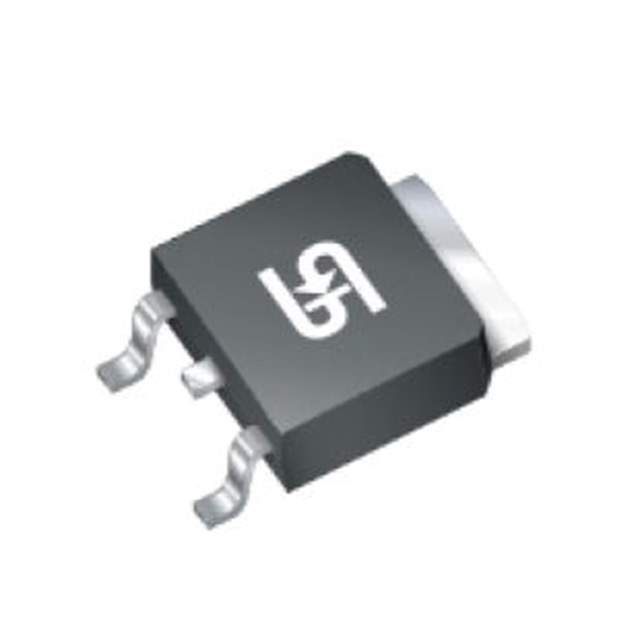

The TSM1NB60CPROG is a 600V N-Channel MOSFET manufactured by Taiwan Semiconductor. It is designed for high voltage, high speed switching applications.

Applications:

• Switching Power Supplies (SMPS)
• Power Factor Correction (PFC)
• Lighting ballast
• DC-DC Converters
• Motor control

Features:

• Low gate charge
• Fast switching speed
• High voltage capability
• Avalanche rated
• RoHS compliant

Benefits:

• High Efficiency in power conversion
• Reduced Switching Losses
• Robust performance in high voltage applications
• Ability to withstand transient voltage spikes

Additional Details:

The TSM1NB60CPROG is typically available in a through-hole package like TO-251 or TO-252. Key electrical characteristics include drain-source voltage (VDS), gate-source voltage (VGS), drain current (ID), on-resistance (RDS(on)), and gate charge (Qg). The datasheet is crucial for determining exact electrical parameters, thermal resistance, and safe operating area. The avalanche rating indicates the device's ability to withstand transient voltage spikes without damage. Low gate charge reduces switching losses. It's designed for applications where a high voltage N-channel MOSFET is required for efficient and reliable switching. Careful attention must be paid to the thermal characteristics and power dissipation of the device, as specified in the datasheet, to avoid exceeding the maximum operating temperature. Correctly applying the MOSFET as per the manufacturer's guidelines is crucial for achieving stable and reliable performance.
