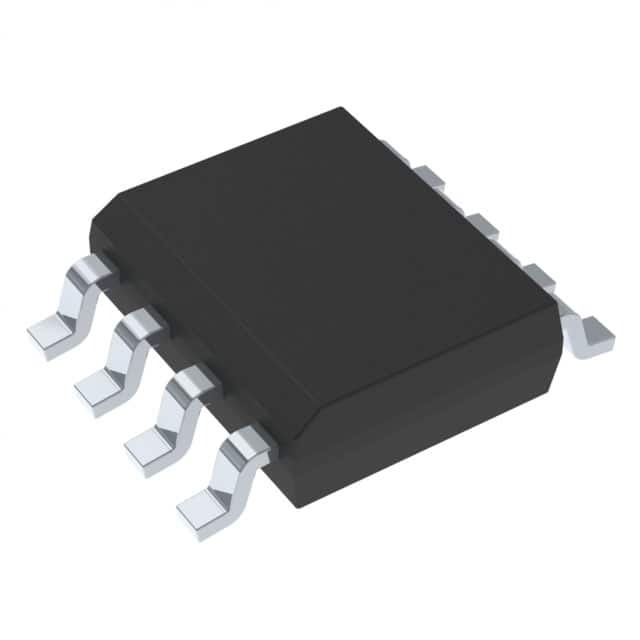

TSM4436CS

Name: TSM4436CS
Brand: Taiwan Semiconductor
SKU: 1380166
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSM4436CS
Manufacturer	Taiwan Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	60V, 8A, SINGLE N-CHANNEL POWER
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Taiwan Semiconductor Corporation
Series	-
Package	Tape & Reel
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	36mOhm @ 4.6A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	16 nC @ 4.5 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1100 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SOP
Package / Case	8-SOIC (0.154", 3.90mm Width)
Base Product Number	TSM4436
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1380166-TSM4436CS
Ultra Librarian 3D Model	Ultra Librarian TSM4436CS CAD Model

Alternative Products

Description

The TSM4436CS is an N-channel MOSFET transistor manufactured by Taiwan Semiconductor Corporation.

Package / Case: 8-SOIC (0.154", 3.90mm Width)
Vdss - Drain to Source Voltage: 60V
Id - Continuous Drain Current @ 25°C: 8A (Ta)
Drive Voltage: 4.5V (Max Rds On), 10V (Min Rds On)
Rds On - On-Resistance: 36mOhm @ 4.6A, 10V
Vgs(th) - Gate-Source Threshold Voltage: 3V @ 250µA
Qg - Gate Charge: 16nC @ 4.5V
Vgs - Gate-Source Voltage: ±20V
Ciss - Input Capacitance: 1100pF @ 30V
Power Dissipation: 2.5W (Ta)
