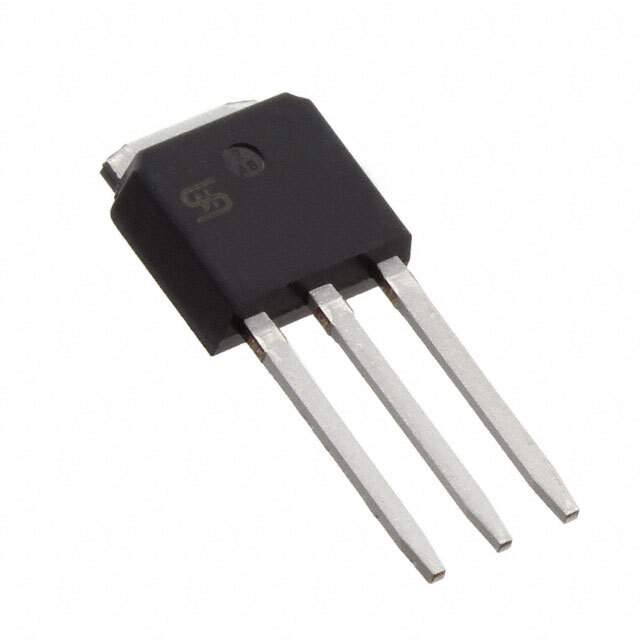

TSM4NB65CH C5G Real Image
Same model may have multiple batches, images only for reference.

TSM4NB65CH C5G

Part No TSM4NB65CH C5G
Manufacturer Taiwan Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET, SINGLE, N-CHANNEL, PLANA / Trans MOSFET N-CH 650V 4A 3-Pin(3+Tab) TO-251 Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer TSC America Inc.
Packaging Tube
Channel Type Type N
Technology MOSFET
Drain Source Voltage 650V
Current - Continuous Drain (Id) @ 25°C 4A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Vgs(th) (Maximum) @ Id 4.5V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 13.46nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 549pF @ 25V
Vgs (Maximum) ±30V
Power Dissipation (Maximum) 70W (Tc)
Rds On (Maximum) @ Id, Vgs 3.37 Ohm @ 2A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Manufacturer Package TO-251 (IPAK)
Package TO-251-3 Short Leads, IPak, TO-251AA
Win Source Part Number 798505-TSM4NB65CH C5G
Popularity Medium
Supply and Demand Status Limited
Family Name TSM4NB65CH C5G
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian TSM4NB65CH C5G CAD Model

Description

The TSM4NB65CH C5G is a high-quality MOSFET transistor that is widely used in various electronic applications.

  • Current Rating: 4A
  • Voltage Rating: 650V
  • Transistor Type: Through-hole
  • Packaging: Tube
