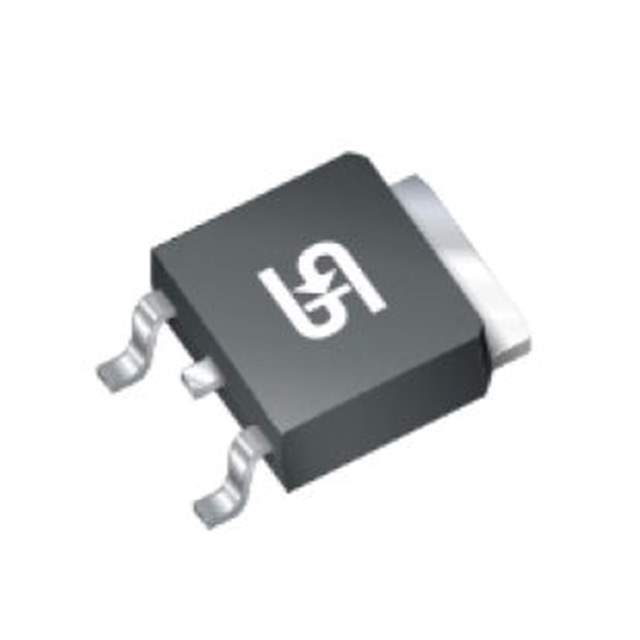

TSM500N03CP ROG

Name: TSM500N03CP ROG
Brand: Taiwan Semiconductor
SKU: 1383753
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	TSM500N03CP ROG
Manufacturer	Taiwan Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 30V 12.5A TO252 / N-Channel 30 V 12.5A (Tc) 12.5W (Tc) Surface Mount TO-252, (D-Pak)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors>FETs, MOSFETs>Single FETs, MOSFETs
Mfr	Taiwan Semiconductor
Series	-
Package	Tape & Reel
Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	12.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	50mOhm @ 8A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7 nC @ 4.5 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	270 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	12.5W (Tc)
Temperature Range - Operating	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-252, (D-Pak)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Standard Package	2,500 pcs
Win Source Part Number	1383753-TSM500N03CP ROG
Ultra Librarian 3D Model	Ultra Librarian TSM500N03CP ROG CAD Model

Alternative Products

Description

The TSM500N03CP ROG is a N-Channel MOSFET transistor designed for use in discrete semiconductor products, manufactured by Taiwan Semiconductor.

Drain to Source Voltage (Vdss): 30V
Continuous Drain Current (Id): 12.5A @ 25°C
Rds On (Max): 50mOhm @ 8A and 10V
Gate Charge (Qg): 7nC @ 4.5V
Package: TO-252-3, DPak
Mounting Type: Surface Mount
Power Dissipation: 12.5W @ Tc
Status: Obsolete
