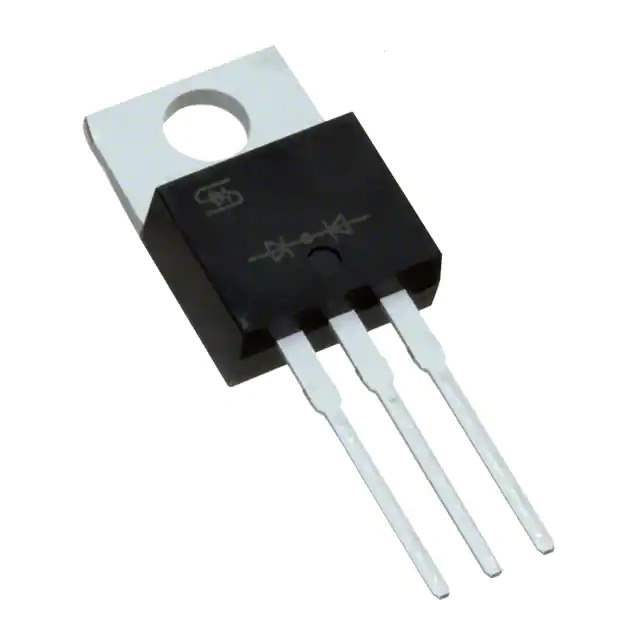

TSM80N08CZ C0G

Name: TSM80N08CZ C0G
Brand: Taiwan Semiconductor
SKU: 850245
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TSM80N08CZ C0G
Manufacturer	Taiwan Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CHANNEL 75V 80A TO220
Datasheet	TSM80N08CZ C0G Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Taiwan Semiconductor
Package	Tube
Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	75 V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	8mOhm @ 40A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	91.5 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3905 pF @ 30 V
Power Dissipation (Max)	113.6W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220
Package / Case	TO-220-3
Base Product Number	TSM80
Standard Package	50 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	850245-TSM80N08CZ C0G
Ultra Librarian 3D Model	Ultra Librarian TSM80N08CZ C0G CAD Model

Alternative Products

Description

The TSM80N08CZ C0G is an N-channel MOSFET transistor with a drain-to-source voltage rating of 75V and a continuous drain current rating of 80A. TSM80N08CZ C0G is manufactured by Taiwan Semiconductor.

Channel Type: N-Channel
Drain-to-Source Voltage: 75V
Continuous Drain Current: 80A
On-Resistance: 8mOhm @ 40A
Gate-Source Threshold Voltage: 4V
Power Dissipation: 113.6W
Mounting Type: Through-Hole
Package Type: TO-220-3
Operating Temperature: -55°C to 150°C
Status: Obsolete
