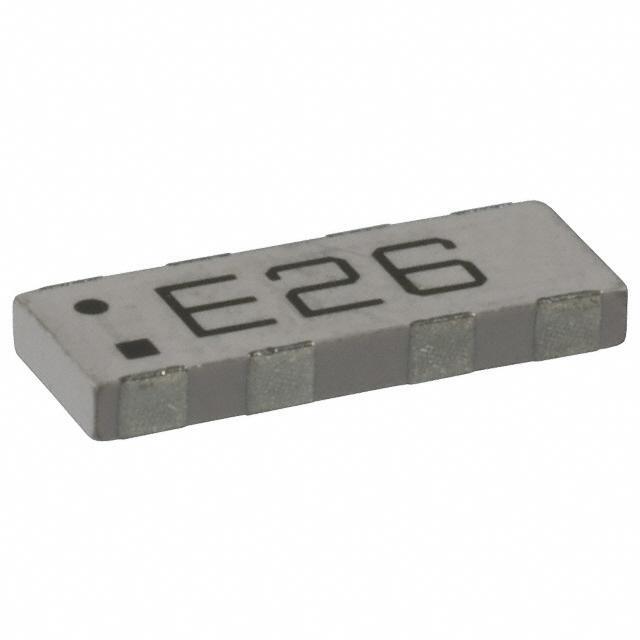

AH083F245001-T Taiyo Yuden
Same model may have multiple batches, images only for reference.

AH083F245001-T

Part No AH083F245001-T
Manufacturer Taiyo Yuden
Catalog RF Antennas
Description ANT BLUETOOTH W-LAN ZIGBEE WIMAX
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Frequency Group UHF (2 GHz to 3 GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz to 2.5GHz
Antenna Type Chip
Number of Bands 1
VSWR 3
Gain 1.8dBi
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.039" (1.00mm)
Applications Bluetooth, WiMax, WLAN, Zigbee
Win Source Part Number 009581-AH083F245001-T
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name AH083F245001
Introduction Date September 06, 2006
Estimated EOL Date 2022
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian AH083F245001-T CAD Model

Description

AH083F245001-T Component Description

The AH083F245001-T is specifically engineered for high-performance applications. Renowned for its precision and endurance, this component serves as an integral part of sophisticated electronics.

  • Applications: Consumer electronics, Automotive electronics, Advanced communications, Data processing units
  • Features: High-frequency stability, Excellent thermal management, Precision engineering, Long lifespan
  • Benefits: Optimizes device functionality, Reliable under extreme conditions, Minimal performance degradation over time

    • Known for its unmatched precision, the AH083F245001-T is a staple in advanced electronic equipment, providing exceptional support for modern technologies.
