Same model may have multiple batches, images only for reference.

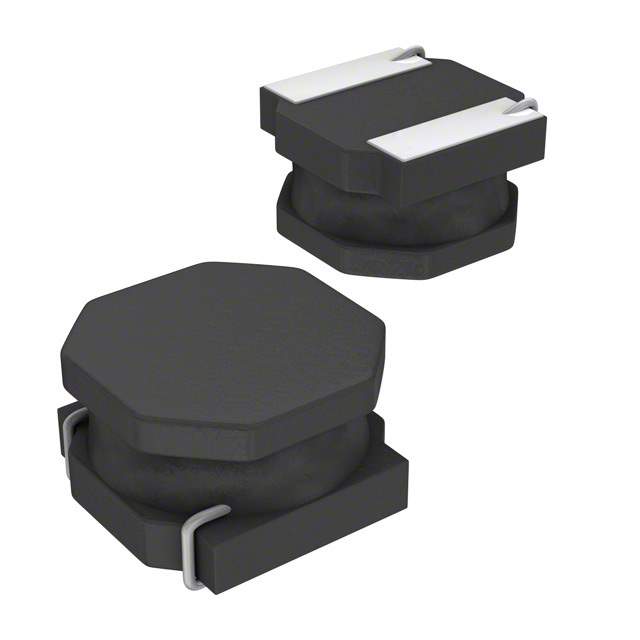

MDMK2020T2R2MMV Real Image
Same model may have multiple batches, images only for reference.

MDMK2020T2R2MMV

Part No MDMK2020T2R2MMV
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 2.2UH 109 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Metal
Inductance 2.2μH
Tolerance ±20%
DC Resistance (DCR) 109 mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C to 125°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 106457-MDMK2020T2R2MMV
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian MDMK2020T2R2MMV CAD Model

Description

The MDMK2020T2R2MMV is a wirewound inductor from Taiyo Yuden.

  • It has an inductance of: 2.2μH
  • DC resistance (DCR): 109 mOhm Max.
  • The height seated (Max) is: 0.047" (1.20mm)
  • The mounting type is: SMD (SMT).
  • The tolerance is: ±20%
  • The ratings are: AEC-Q200.
  • The temperature range for operating is: -40°C to 125°C.
  • It is an: active product with a medium popularity and a balance in supply and demand status.
  • The quantity per package is: 2,500.
  • It is a great choice for: inductors, coils, and chokes category.
