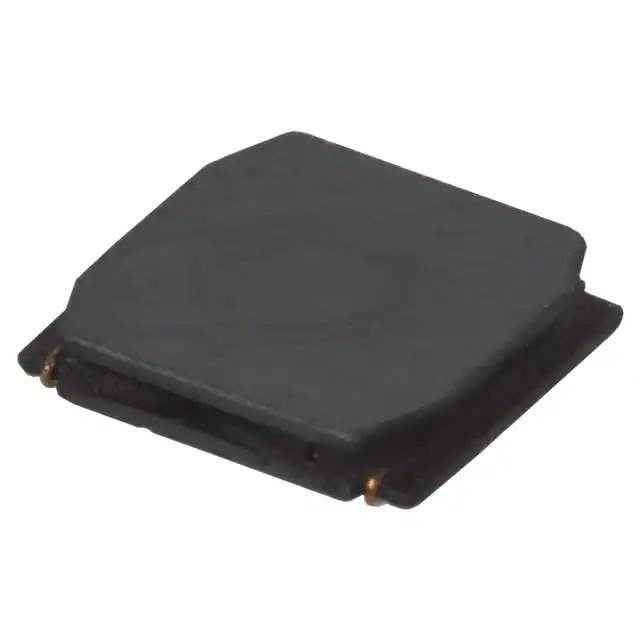

NR6012T220M

Name: NR6012T220M
Brand: Taiyo Yuden
SKU: 887542
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NR6012T220M
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 22UH 630MA 530MOHM SMD / 22 μH Shielded Drum Core, Wirewound Inductor 630 mA 530mOhm Max Nonstandard
Datasheet	NR6012T220M Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Taiyo Yuden
Series	NR
Package	Tape & Reel (TR)Cut Tape (CT)
Product Status	Obsolete
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	22 µH
Tolerance	±20%
Current Rating (Amps)	630 mA
Current - Saturation (Isat)	760mA
Shielding	Shielded
DC Resistance (DCR)	530mOhm Max
Frequency - Self Resonant	12MHz
Temperature Range - Operating	-25°C ~ 120°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max)	0.047" (1.20mm)
Standard Package	1,000 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	887542-NR6012T220M
Ultra Librarian 3D Model	Ultra Librarian NR6012T220M CAD Model

Alternative Products

Description

The 887542-NR6012T220M is a drum core, wirewound inductor from Taiyo Yuden.

Series: NR
Size: 0.236" L x 0.236" W (6.00mm x 6.00mm)
Inductance: 22 µH
Tolerance: ±20%
Shielded: Yes
Maximum Seated Height: 0.047" (1.20mm)
Operating Temperature Range: -25°C to 120°C
DC Resistance (DCR): 530mOhm
Maximum Current Rating: 630 mA
Mounting: Surface mount
Package: Nonstandard
Core Material: Ferrite
Self-Resonant Frequency: 12MHz
Status: Obsolete
Application: Inductors, coils, and chokes
