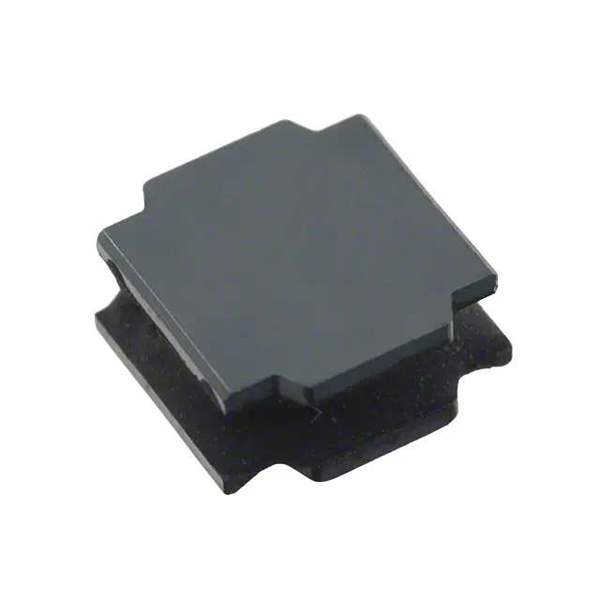

NRS6012T4R7MMGG Real Image
Same model may have multiple batches, images only for reference.

NRS6012T4R7MMGG

Part No NRS6012T4R7MMGG
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.55A 150MOHM SM
Datasheet
NRS6012T4R7MMGG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Taiyo Yuden
Series NR, S Type
Package Tape & Reel
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 1.55 A
Current - Saturation (Isat) 1.6A
Shielding Shielded
DC Resistance (DCR) 150mOhm Max
Frequency - Self Resonant 36MHz
Temperature Range - Operating -25°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 649446-NRS6012T4R7MMGG
Ultra Librarian 3D Model Ultra Librarian NRS6012T4R7MMGG CAD Model

Description

The 649446-NRS6012T4R7MMGG is a shielded drum core, wirewound inductor from Taiyo Yuden's NR series.

  • Size: 0.236" L x 0.236" W (6.00mm x 6.00mm)
  • Height: 0.047" (1.20mm)
  • Mounting Type: Surface Mount
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • DC Resistance (DCR): 150mOhm max
  • Current Rating: 1.55 A
  • Operating Temperature: -25°C to 125°C
