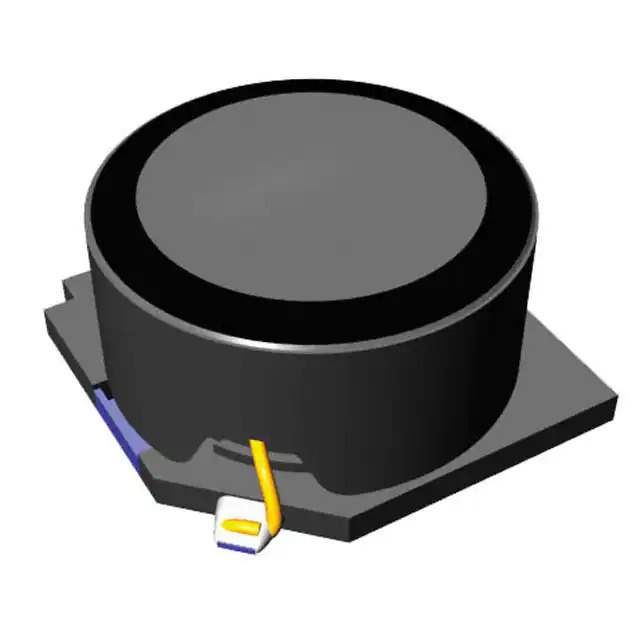

NS12555T100MN

Name: NS12555T100MN
Brand: Taiyo Yuden
SKU: 649500
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NS12555T100MN
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 10UH 5.04A 21 MOHM SMD
Datasheet	NS12555T100MN Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Taiyo Yuden
Series	NS
Package	Tape & Reel
Product Status	Not For New Designs
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	10 µH
Tolerance	±20%
Current Rating (Amps)	5.04 A
Current - Saturation (Isat)	4.73A
Shielding	Shielded
DC Resistance (DCR)	21mOhm Max
Frequency - Self Resonant	21.8MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)	0.230" (5.85mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	649500-NS12555T100MN
Ultra Librarian 3D Model	Ultra Librarian NS12555T100MN CAD Model

Alternative Products

Description

The 649500-NS12555T100MN is a drum core, wirewound inductor from Taiyo Yuden's NS series.

Type: Shielded Inductor
Size: 0.492" L x 0.492" W (12.50mm x 12.50mm)
Inductance: 10 µH
Maximum Seated Height: 0.230" (5.85mm)
DC Resistance (DCR): 21mOhm Max
Temperature Range: -40°C to 125°C
Current Rating: 5.04 A
Saturation Current: 4.73A
Package: Tape & Reel, Nonstandard
Recommendation: Not recommended for new designs
