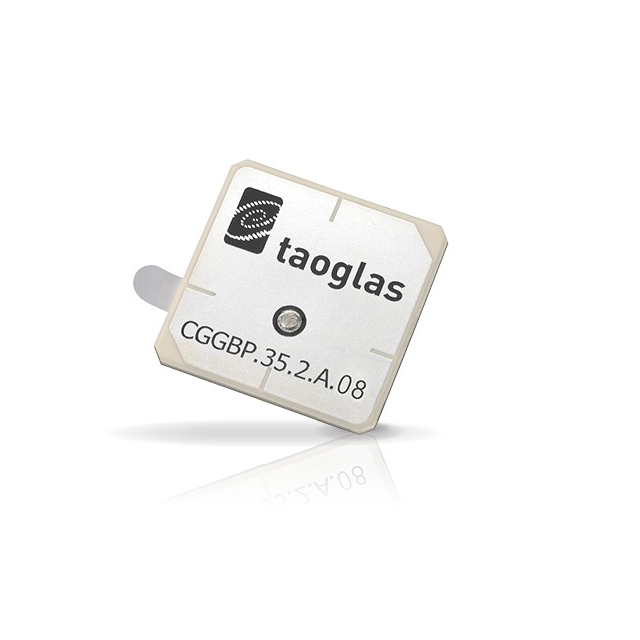

CGGBP.35.2.A.08 Real Image
Same model may have multiple batches, images only for reference.

CGGBP.35.2.A.08

Part No CGGBP.35.2.A.08
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 1.561/1.575GHZ CER PATCH / 1.561GHz, 1.575GHz, 1.602GHz Beidou, Galileo, GLONASS, GPS Ceramic Patch RF Antenna 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.607GHz 3.45dBi, 3.68dBi, 4.87dBi Pin Adhesive
Datasheet
CGGBP.35.2.A.08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Package Tray
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.561GHz, 1.575GHz, 1.602GHz
Frequency Range 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.607GHz
Antenna Type Ceramic Patch
Number of Bands 3
Gain 3.45dBi, 3.68dBi, 4.87dBi
Termination Pin
Mounting Type Adhesive
Height (Max) 0.079" (2.00mm)
Applications Beidou, Galileo, GLONASS, GPS
Base Product Number CGGBP.35
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8529.10.4040
Other Names 931-1514,2266-CGGBP.35.2.A.08
Standard Package 72
Win Source Part Number 1130762-CGGBP.35.2.A.08
Ultra Librarian 3D Model Ultra Librarian CGGBP.35.2.A.08 CAD Model

Description

The Taoglas Limited CGGBP.35.2.A.08 is an electronic component designed for RF/IF and RFID applications.

  • Application: RF/IF and RFID
  • Type: ceramic patch antenna
  • Frequency Range: 1.559GHz to 1.563GHz, 1.574GHz to 1.576GHz, and 1.598GHz to 1.607GHz
  • VSWR: -
  • Gain: 3.45dBi, 3.68dBi, and 4.87dBi
  • Applications: Beidou, Galileo, GLONASS, and GPS
