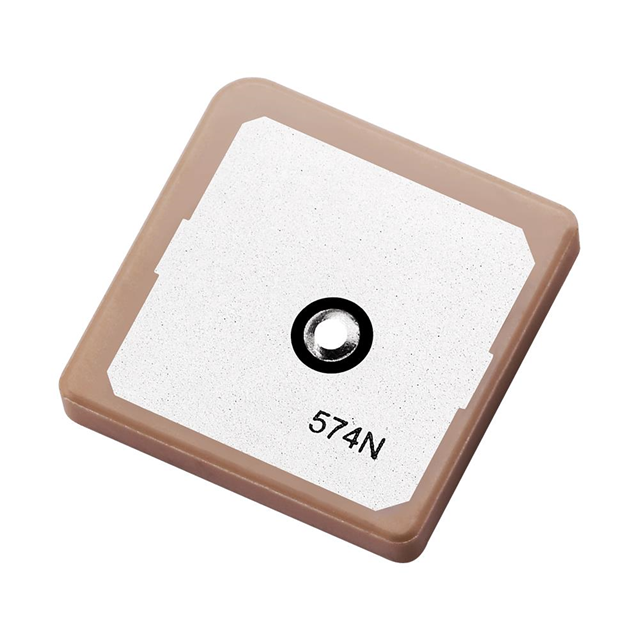

GP.1575.25.4.A.02 Real Image
Same model may have multiple batches, images only for reference.

GP.1575.25.4.A.02

Part No GP.1575.25.4.A.02
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 1.575GHZ CER PATCH PIN / 1.575GHz GPS Ceramic Patch RF Antenna 1.570GHz ~ 1.580GHz 1.55dBic Pin Adhesive
Datasheet
GP.1575.25.4.A.02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Package Tray
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.575GHz
Frequency Range 1.570GHz ~ 1.580GHz
Antenna Type Ceramic Patch
Number of Bands 1
VSWR 1.2
Return Loss -10dB
Gain 1.55dBic
Termination Pin
Mounting Type Adhesive
Height (Max) 0.197" (5.00mm)
Applications GPS
Base Product Number GP.1575
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8529.10.9100
Other Names 931-1015,GP1575254A02,GP.25A,2266-GP.1575.25.4.A.02
Standard Package 200
Win Source Part Number 1201315-GP.1575.25.4.A.02
Ultra Librarian 3D Model Ultra Librarian GP.1575.25.4.A.02 CAD Model

Description

The GP.1575.25.4.A.02 is a ceramic patch antenna from Taoglas Limited.

  • Application: GPS
  • Frequency Range: 1.570GHz to 1.580GHz
  • Gain: 1.55dBic
  • VSWR: 1.2
  • Package: tray
  • Operating Temperature: up to 85°C
  • REACH Compliant: Yes
  • ECCN: 7A994
