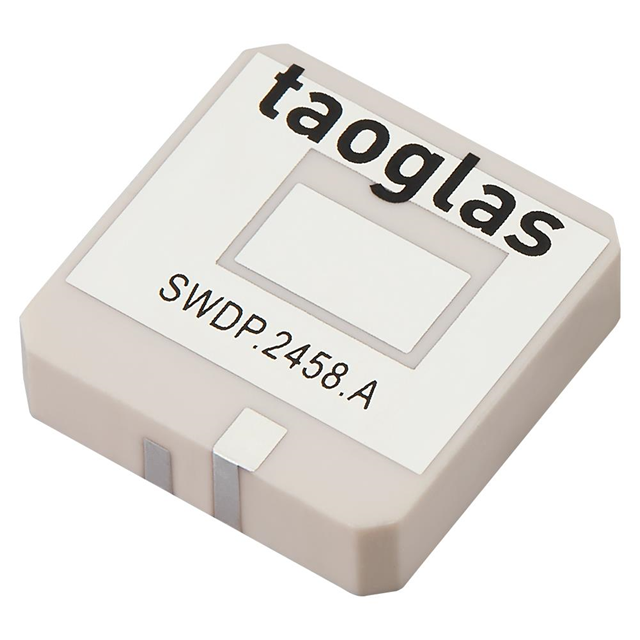

SWDP.2458.15.4.A.02 Real Image
Same model may have multiple batches, images only for reference.

SWDP.2458.15.4.A.02

Part No SWDP.2458.15.4.A.02
Manufacturer Taoglas Limited
Catalog RF Antennas
Description SWDP.2458.15.4.A.02 5DBI 15MM EM / 2.45GHz, 5.2GHz, 5.675GHz Wi-Fi Ceramic Patch RF Antenna 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.5GHz, 5.5GHz ~ 5.85GHz 5.7dBi, 5.29dBi, 4.03dBi Solder Surface Mount
Datasheet
SWDP.2458.15.4.A.02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Package Tape & Reel
RF Family/Standard WiFi
Frequency Group UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band) 2.45GHz, 5.2GHz, 5.675GHz
Frequency Range 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.5GHz, 5.5GHz ~ 5.85GHz
Antenna Type Ceramic Patch
Number of Bands 3
Gain 5.7dBi, 5.29dBi, 4.03dBi
Power - Max 10 W
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.157" (4.00mm)
Applications Wi-Fi
Base Product Number SWDP.2458
Other Names 931-1594-1,931-1594-2,2266-SWDP.2458.15.4.A.02,931-1594-6
Standard Package 500
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Win Source Part Number 1236181-SWDP.2458.15.4.A.02
Ultra Librarian 3D Model Ultra Librarian SWDP.2458.15.4.A.02 CAD Model

Description

The SWDP.2458.15.4.A.02 is a ceramic patch antenna designed for Wi-Fi applications.

  • Frequency Range: 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.5GHz, and 5.5GHz ~ 5.85GHz
  • Gain: 5.7dBi, 5.29dBi, and 4.03dBi
  • Frequency Group: UHF (2GHz ~ 3GHz) and SHF (f > 4GHz)
  • Frequency (center/band): 2.45GHz, 5.2GHz, and 5.675GHz
  • Mounting Type: SMD (SMT)
  • Power: 10W
  • Height: 0.157 inches (4.00mm)
  • Packaging: tape and reel
  • Manufacturer: Taoglas Limited
  • Win Source part number: 1236181-SWDP.2458.15.4.A.02
