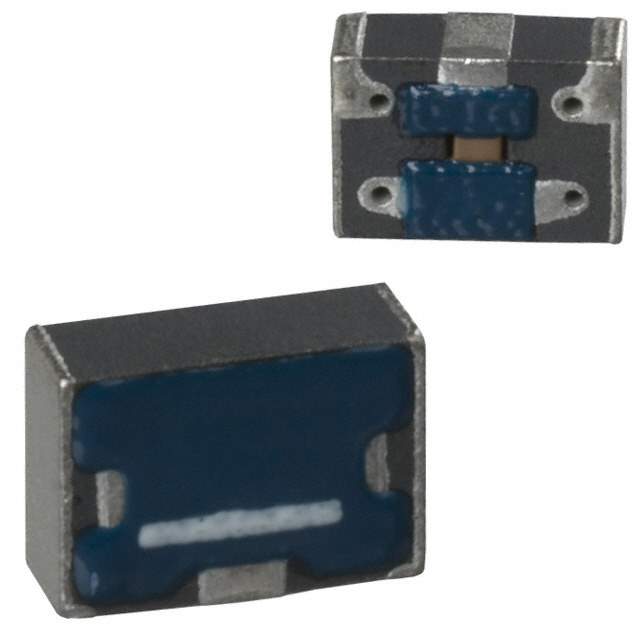

ACH4518-681-TD01 Real Image
Same model may have multiple batches, images only for reference.

ACH4518-681-TD01

Part No ACH4518-681-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACH4518-681-TD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 75MHz to 160MHz
Resistance - Channel (Ohms) 0.06
Current 2A
ESD Protection No
Temperature Range - Operating -40°C to 125°C
Applications General Purpose
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.071" L x 0.177" W (1.80mm x 4.50mm)
Height 0.138" (3.50mm)
Win Source Part Number 007836-ACH4518-681-TD01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACH4518-681-TD01 CAD Model

Description

Product Overview

The ACH4518-681-TD01 is designed for superior inductance performance and reliability, making it an excellent choice for both commercial and industrial electronic systems.

Features and Benefits

  • High saturation current, ideal for dynamic environments.
  • Cost-effective solution for large-scale applications.
  • Smooth DC bias characteristics for optimal performance.

Applications

  • Communication devices
  • DC-AC inverters
  • Signal processing
  • Network interface modules
