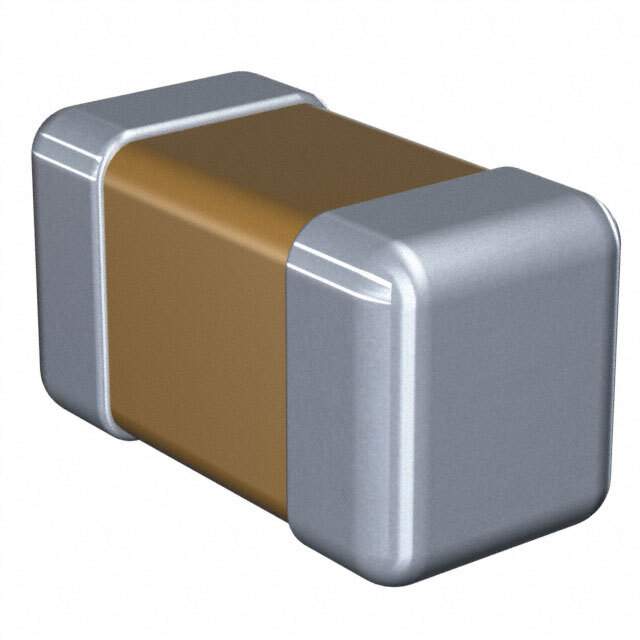

The C0603C0G1E100DT00NN is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. It is designed for general-purpose applications and offers a combination of small size and stable electrical characteristics. This capacitor is commonly used in various electronic devices for bypassing, decoupling, and filtering.

Applications:

• Bypassing: Used to bypass noise or unwanted AC signals from a DC power supply line, ensuring a clean and stable voltage for sensitive components.
• Decoupling: Placed close to integrated circuits (ICs) to provide a local energy reservoir and reduce voltage fluctuations during switching, improving the overall stability of the IC.
• Filtering: Used in filter circuits to attenuate specific frequencies, such as in low-pass, high-pass, or band-pass filters.
• Timing Circuits: Employed in timing circuits and oscillators where a stable capacitance value is required.

Features:

• Small Size: The 0603 case size (EIA 0603) allows for high-density mounting on printed circuit boards (PCBs).
• C0G Dielectric: Offers a very stable capacitance with minimal change over temperature, voltage, and time. The temperature coefficient is typically within ±30 ppm/°C.
• Low ESR: Exhibits low equivalent series resistance (ESR), resulting in minimal power dissipation and improved high-frequency performance.
• High Voltage Rating: Rated for 25 VDC, making it suitable for a wide range of applications.
• Surface Mount Technology (SMT): Designed for automated surface mount assembly, reducing manufacturing costs and improving production efficiency.

Benefits:

• Stable Performance: The C0G dielectric ensures minimal capacitance variation with temperature, voltage, and time, providing reliable performance in various operating conditions.
• High Reliability: TDK MLCCs are known for their high reliability and long lifespan, ensuring consistent performance over time.
• Effective Noise Filtering: Effectively filters out unwanted noise and AC signals, improving the signal integrity of electronic circuits.
• Compact Design: The small 0603 case size allows for high-density circuit designs, reducing the overall size and weight of electronic devices.
• Easy Assembly: Designed for automated surface mount assembly, reducing manufacturing costs and improving production efficiency.

Additional Details:

Case Size: 0603 (EIA)

Capacitance: 10 pF

Voltage Rating: 25 VDC

Dielectric: C0G (NP0)

Temperature Coefficient: ±30 ppm/°C

Termination: Nickel Barrier with Tin Plating

Tolerance: ±0.5 pF
