Same model may have multiple batches, images only for reference.

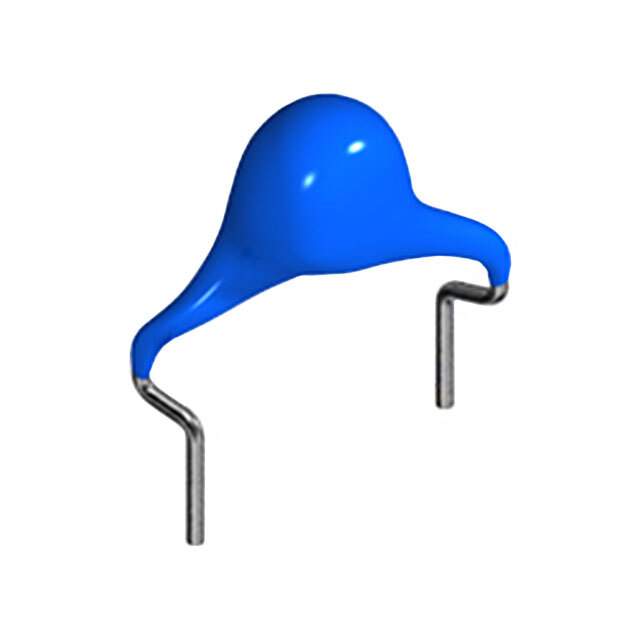

CC45SL3FD220JYVNA Real Image
Same model may have multiple batches, images only for reference.

CC45SL3FD220JYVNA

Part No CC45SL3FD220JYVNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 22PF 3KV SL RADIAL / 22 pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr TDK Corporation
Series CC45
Package Cut Tape (CT),Tape & Box (TB)
Capacitance 22 pF
Tolerance ±5%
Voltage - Rated 3000V (3kV)
Temperature Coefficient SL
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage, Low Dissipation Factor
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.217" Dia (5.50mm)
Height - Seated (Max) 0.374" (9.50mm)
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Other Names 445-CC45SL3FD220JYVNATR,445-CC45SL3FD220JYVNATB,445-CC45SL3FD220JYVNA-ND,CC45SL3FD220JYVNA6C,445-CC45SL3FD220JYVNA,CC45SL3FD220JYVNA-ND,445-CC45SL3FD220JYVNATR-ND,445-CC45SL3FD220JYVNACT
Standard Package 1,000
Win Source Part Number 1133768-CC45SL3FD220JYVNA
Ultra Librarian 3D Model Ultra Librarian CC45SL3FD220JYVNA CAD Model

Description

The CC45SL3FD220JYVNA ceramic capacitor is a general-purpose component that is designed to provide high voltage and low dissipation factor.

  • Capacitance: 22 pF
  • Voltage Rating: 3000V (3kV)
  • Ideal for: Wide range of applications
  • Temperature Coefficient: SL temperature coefficient ensures stability over a wide range of operating temperatures, from -25°C to 125°C
  • Package: Radial, disc package
  • Mounting: Through hole
  • Lead Style: Formed leads - kinked
  • Lead Spacing: 0.295" (7.50mm)
  • Height - Seated (Max): 0.374" (9.50mm)
  • Thickness (Max): Not specified
  • Standard Package: 1,000
  • Failure Rate: Not specified
  • Manufacturer: TDK Corporation
