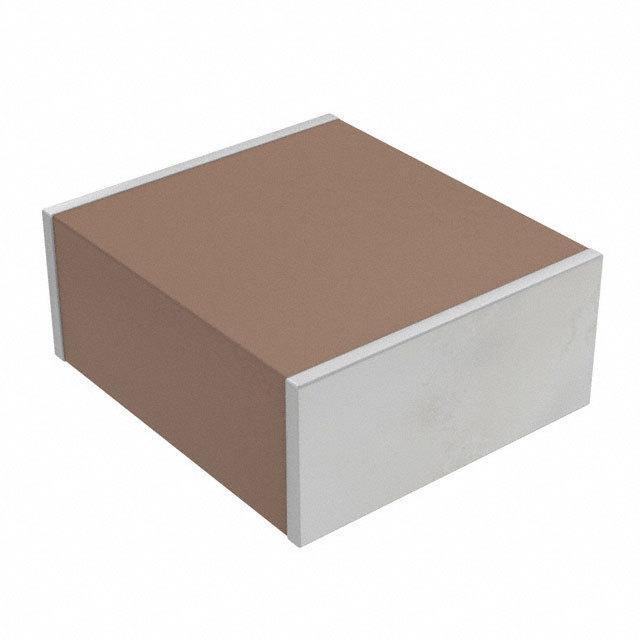

Same model may have multiple batches, images only for reference.
CGA9P3X7S2A156M250KB TDK Corporation
Same model may have multiple batches, images only for reference.

CGA9P3X7S2A156M250KB

Part No CGA9P3X7S2A156M250KB
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 15UF 100V X7S 2220 / Cap Ceramic 15uF 100V X7S 20% Pad SMD 2220 125°C Automotive T/R
Datasheet
CGA9P3X7S2A156M250KB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Series CGA
Packaging Reel package
Capacitance 15μF
Tolerance ±20%
Voltage Rating DC 100V
Temperature Coefficient X7S
Operating Temperature Range -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Mounting Surface Mount, MLCC
Package 2220 (5750 Metric)
Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Thickness (Maximum) 0.098" (2.50mm)
Win Source Part Number 771504-CGA9P3X7S2A156M250KB
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Family Name CGA9
Introduction Date March 14, 2013
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian CGA9P3X7S2A156M250KB CAD Model

Description

The TDK Corporation CGA series capacitor is a surface mountable MLCC with a capacitance of 15μF.

  • Tolerance: ±20%
  • Temperature Coefficient: X7S
  • Voltage Rating DC: 100V
  • Applications: Automotive
  • AEC-Q200 Rated: Yes
  • Package: Reel
  • Dimension: 0.224 inches L x 0.197 inches W (5.70mm x 5.00mm)
  • Thickness: 0.098 inches (2.50mm)
  • Estimated EOL Date: 2028
  • Halogen-Free: Yes
