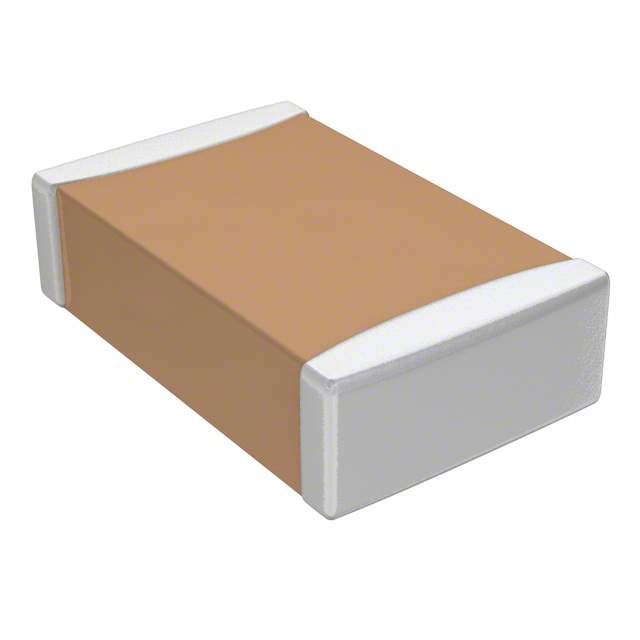

CGB4B3X5R1E105K055AB Real Image
Same model may have multiple batches, images only for reference.

CGB4B3X5R1E105K055AB

Part No CGB4B3X5R1E105K055AB
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 1UF 25V X5R 0805 / 1 µF ±10% 25V Ceramic Capacitor X5R 0805 (2012 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CGB
Package Tape & Reel
Product Status Last Time Buy
Capacitance 1 µF
Tolerance ±10%
Voltage - Rated 25V
Temperature Coefficient X5R
Temperature Range - Operating -55°C ~ 85°C
Features Low Profile
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 0805 (2012 Metric)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Thickness (Max) 0.022" (0.55mm)
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1341532-CGB4B3X5R1E105K055AB
Ultra Librarian 3D Model Ultra Librarian CGB4B3X5R1E105K055AB CAD Model

Description

The TDK Corporation CGB series ceramic capacitor is a surface mount component with a low profile feature. It has a tape & reel package and a size of 0.079" L x 0.049" W (2.00mm x 1.25mm), with a maximum thickness of 0.022" (0.55mm). TDK Corporation.

  • Package: tape & reel
  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Thickness Maximum: 0.022" (0.55mm)
  • Capacitance: 1 μF
  • Voltage Rating: 25V
  • Tolerance: ±10%
  • Temperature Coefficient: X5R
  • Application: General Purpose
  • Temperature Range: -55°C to 85°C
  • Status: Last Time Buy
