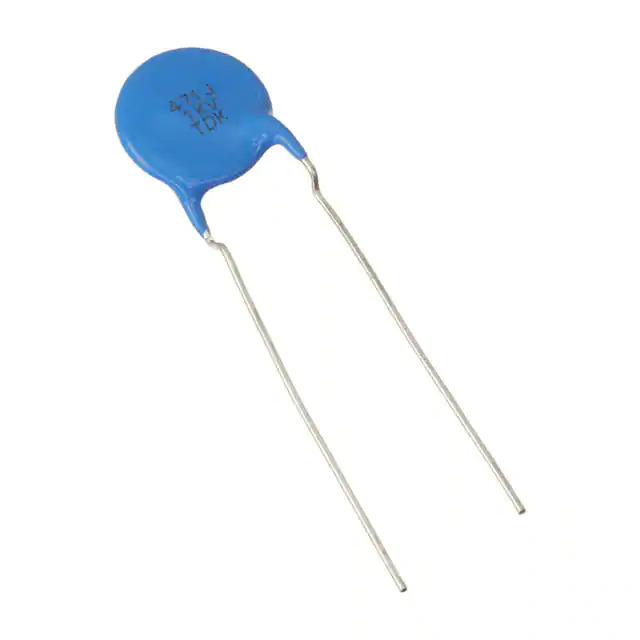

Same model may have multiple batches, images only for reference.
CK45-B3AD472KYVNA TDK Corporation
Same model may have multiple batches, images only for reference.

CK45-B3AD472KYVNA

Part No CK45-B3AD472KYVNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 4700PF 1KV RADIAL / 4700 pF ±10% 1000V (1kV) Ceramic Capacitor B Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CK45
Package Tape & Reel (TR)
Product Status Active
Capacitance 4700 pF
Tolerance ±10%
Voltage - Rated 1000V (1kV)
Temperature Coefficient B
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.433" Dia (11.00mm)
Height - Seated (Max) 0.591" (15.00mm)
Thickness (Max) -
Lead Spacing 0.197" (5.00mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1359951-CK45-B3AD472KYVNA
Ultra Librarian 3D Model Ultra Librarian CK45-B3AD472KYVNA CAD Model

Description

The CK45 series ceramic capacitor from TDK Corporation is a radial, disc type component designed for through-hole mounting.

  • Series: CK45
  • Mounting Type: Through Hole
  • Size: 0.433" Dia (11.00mm)
  • Height: 0.591" (15.00mm)
  • Capacitance: 4700 pF
  • Voltage Rating: 1000V (1kV)
  • Application: General Purpose
  • Tolerance: ±10%
  • RoHS: Compliant
  • Temperature Coefficient: B
  • Operating Temperature: -25°C ~ 105°C
