Same model may have multiple batches, images only for reference.

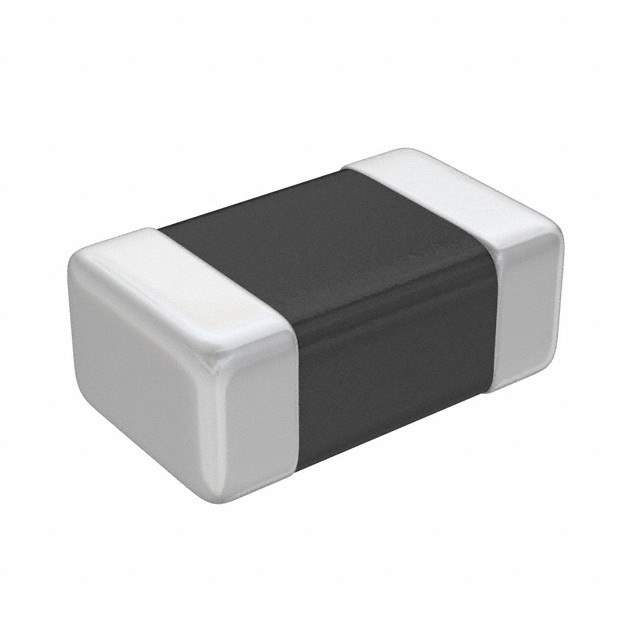

CPL2512T100M Real Image
Same model may have multiple batches, images only for reference.

CPL2512T100M

Part No CPL2512T100M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 10UH 300MA 900 MOHM / Inductor Power Shielded Wirewound 10uH 20% 1MHz Ferrite 0.3A 1.17Ohm DCR 1006 T/R
Datasheet
CPL2512T100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series CPL
Packaging Reel package
Part Status Obsolete(EOL)
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating 300mA
Current - Saturation 300mA
Shielding Shielded
DC Resistance (DCR) 1.17 Ohm Max
Operating Temperature Range -40°C ~ 105°C
Mounting SMD
Package Nonstandard
Dimension 0.098" L x 0.059" W (2.50mm x 1.50mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Win Source Part Number 771743-CPL2512T100M
Popularity Medium
Supply and Demand Status Balance
Family Name CPL
Introduction Date July 04, 2001
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian CPL2512T100M CAD Model

Description

The TDK Corporation CPL2512T100M is a wirewound inductor that belongs to the CPL series. It has a nonstandard package and is shielded.

  • Operating Temperature Range: -40°C to 105°C
  • Inductance: 10μH
  • Family: Inductors, Coils, Chokes
  • ECCN: EAR99
  • Introduction Date: July 04, 2001
  • Estimated EOL Date: Obsolete/end of life
  • Supply and Demand Status: Balanced
