Same model may have multiple batches, images only for reference.

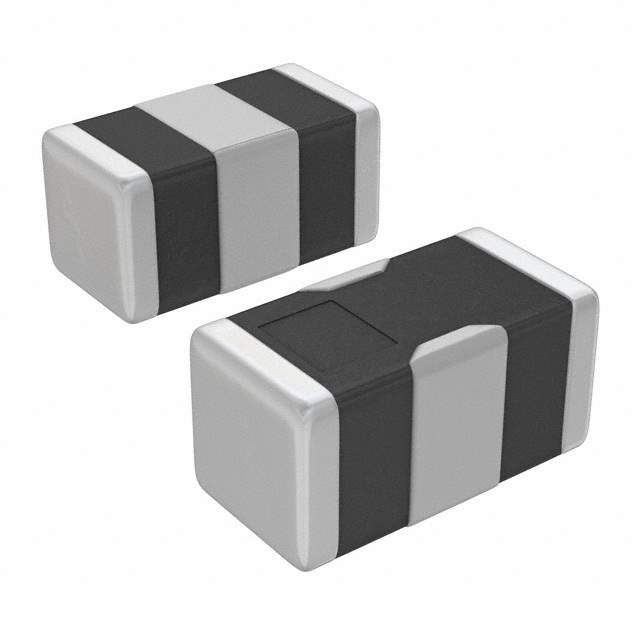

DEA162450BT-1260B3 Real Image
Same model may have multiple batches, images only for reference.

DEA162450BT-1260B3

Part No DEA162450BT-1260B3
Manufacturer TDK Corporation
Catalog RF Filters
Description FILTER BANDPASS WLAN&BLUETOOTH
Datasheet
DEA162450BT-1260B3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency 2.45GHz Center
Bandwidth 100MHz
Filter Type Band Pass
Insertion Loss 1.7dB
Mounting SMD (SMT)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Max) 0.028" (0.70mm)
Win Source Part Number 1032820-DEA162450BT-1260B3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DEA162450BT-1260B3 CAD Model

Description

The DEA162450BT-1260B3 is a band pass filter from TDK Corporation.

  • Center Frequency: 2.45GHz
  • Insertion Loss: 1.7dB
  • Bandwidth: 100MHz
  • Height: 0.028 inches
  • Packaging: Reel
  • Mounting: SMD
