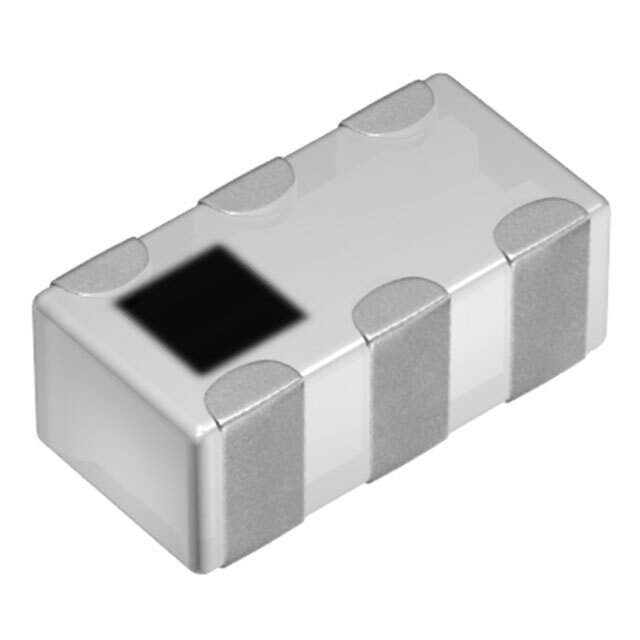

DEA162500LT-1217A1

Part No DEA162500LT-1217A1
Manufacturer TDK Corporation
Catalog RF Filters
Description FILTER LOWPASS 2.4GHZ W-LAN 0603
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency 2.45GHz Center
Bandwidth 100MHz
Filter Type Low Pass
Insertion Loss 0.48dB
Mounting SMD (SMT)
Dimension 0.063" L x 0.024" W (1.60mm x 0.60mm)
Height (Max) 0.035" (0.90mm)
Win Source Part Number 014098-DEA162500LT-1217A1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name DEA
Introduction Date July 26, 2001
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian DEA162500LT-1217A1 CAD Model

Description

Product Description

The DEA162500LT-1217A1 is engineered for optimum performance in a variety of advanced electronic setups. Known for its flexibility and high reliability, it is well-suited for challenging environments.

Applications & Projects

  • Aerospace electronics
  • Advanced robotics
  • High-frequency signal processing
  • Embedded systems

Features & Benefits

  • Reliability: Guarantees stable performance in critical applications.
  • Flexibility: Adapts well to various design configurations.
  • High Dielectric Constant: Enhances capacity without increasing size.
  • Environmentally Friendly Materials: Supports compliance with environmental directives.

Additional Details

Despite not being linked to a specific manufacturer, the DEA162500LT-1217A1 is renowned for its superior resilience and functional versatility in demanding technological environments.
