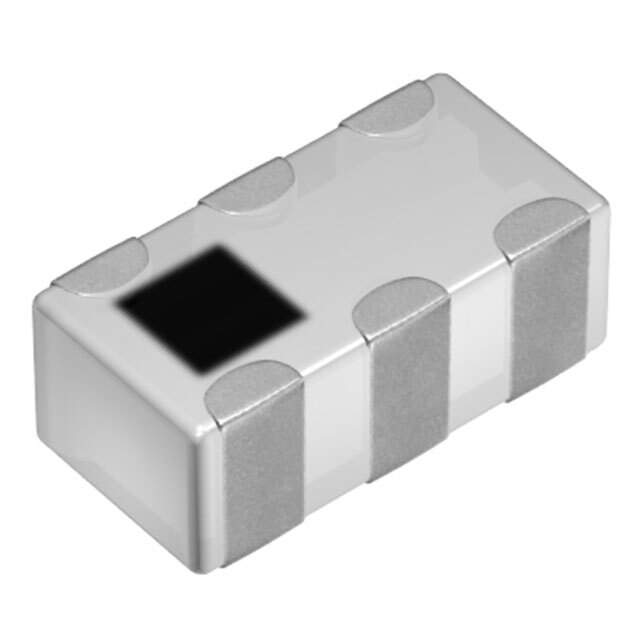

DEA162700LT-5014A1 Real Image
Same model may have multiple batches, images only for reference.

DEA162700LT-5014A1

Part No DEA162700LT-5014A1
Manufacturer TDK Corporation
Catalog RF Filters
Description FILTER LOWPASS 2.5GHZ WIMAX SMD / RF Filter Low Pass 2700MHz 2300MHz to 2700MHz 0.4dB 50Ohm SMD 4Pin 0603 T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency 2.55GHz Center
Bandwidth 300MHz
Filter Type Low Pass
Insertion Loss 0.4dB
Mounting SMD (SMT)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Max) 0.028" (0.70mm)
Win Source Part Number 014099-DEA162700LT-5014A1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name DEA
Introduction Date July 26, 2001
ECCN EAR99
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian DEA162700LT-5014A1 CAD Model

Description

DEA162700LT-5014A1

The DEA162700LT-5014A1 is a high-performance dielectric resonator filter, designed to enhance the efficiency of RF and microwave signal processing.

  • Features and Benefits:
    • High-Quality Resonance Stability
    • Compact Design for Space Efficiency
    • Superior Frequency Selection and Signal Clarity
  • Applications and Projects:
    • Wireless Communication Systems
    • Satellite Receivers
    • Radio Frequency Identification Devices

Specifically engineered to operate under diverse environmental conditions, the DEA162700LT-5014A1 offers unmatched reliability and precision in its performance.
