Same model may have multiple batches, images only for reference.

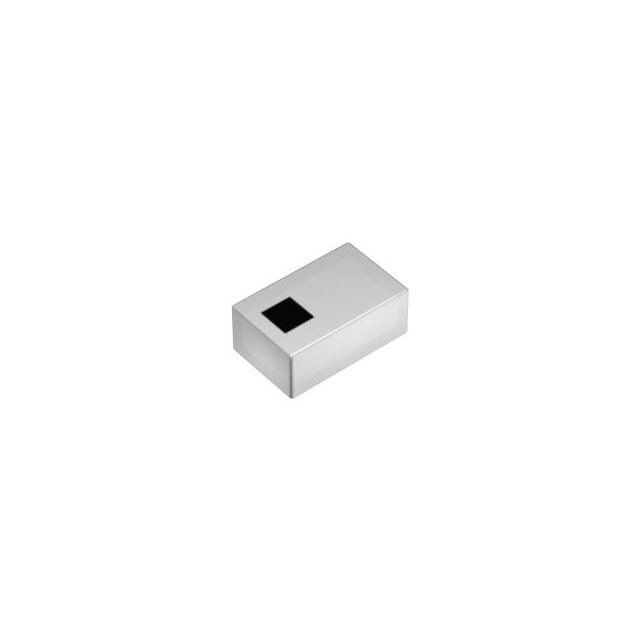

DEA202450BT-1294D1-H TDK Corporation
Same model may have multiple batches, images only for reference.

DEA202450BT-1294D1-H

Part No DEA202450BT-1294D1-H
Manufacturer TDK Corporation
Catalog RF Filters
Description RF FILTER BANDPASS 2.448GHZ 0805
Datasheet
DEA202450BT-1294D1-H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308803-DEA202450BT-1294D1-H
Category Filters >RF Filters
Manufacturer TDK Corporation
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Frequency 2.448GHz Center
Bandwidth 72MHz
Filter Type Band Pass
Insertion Loss 1.35dB
Mounting Type Surface Mount
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Ultra Librarian 3D Model Ultra Librarian DEA202450BT-1294D1-H CAD Model

Description

2.448GHz Center Frequency Band Pass RF Filter (Radio Frequency) 72MHz Bandwidth 1.35dB 0805 (2012 Metric), 4 PC Pad
